Featured Technology & Benefits:

  • Full Height Front Coil Springs
  • Heavy Duty Replacement Radius Arms
  • Track Bar Relocation Bracket
  • Dropped Pitman Arm
  • Bump Stop Relocation Brackets

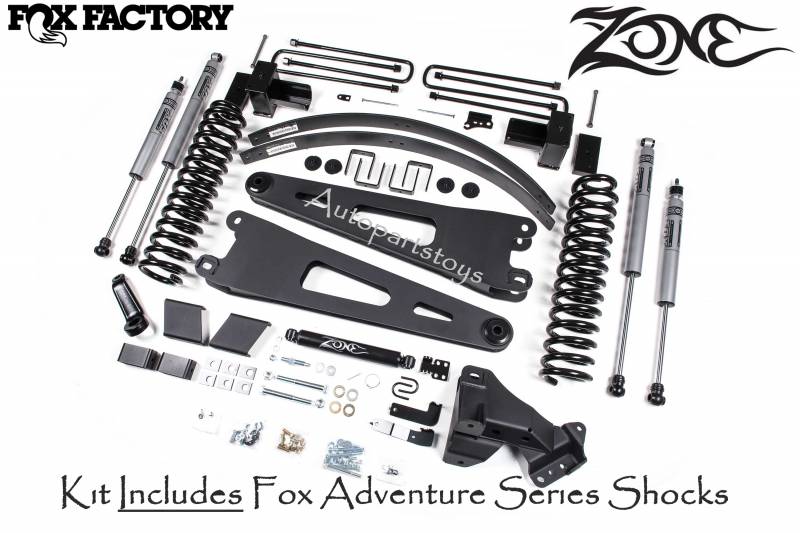

  • Includes Fox Adventure series Shocks
  • Brake Line Relocation Brackets
  • Sway Bar Drop Brackets
  • Rear 6inin Block and Add-A-Leaf
  • Limited Lifetime Warranty

Important Notes!

  • Diesel Model Only
  • If equipped with a 2-piece rear driveshaft, an F5401 carrier bearing drop kit may be required
  • 38x13.50 tires may require minor trimming
  • Must determine if vehicle is equipped with standard (2-leaf main) or heavy payload (3-leaf main w/overload) factory rear leaf spring packs. Standard 2-leaf main applications will require kit # F51F, heavy payload 3-leaf main w/ overload applications will require kit # F52F. See example image image below reference:

ATTENTION STATE OF CALIFORNIA CONSUMERS:
Proposition 65 WARNING!

Quick Specs:

  • Front Lift Height: 6 Inch
  • Front Lift Method: Coil Springs
  • Rear Lift Height: 5 Inch
  • Rear Lift Method: Block/AAL Kit
  • Install Time Hrs: 6-8
  • Difficulty Level 1-5: 3
  • Wheel Size: 17 x 10
  • Back Spacing: 4.5 - 5 Inch
  • Max Tire Size: 38 x 13.50
  • Wheel Size: 18 x 10
  • Back Spacing: 4.5 - 5 Inch
  • Max Tire Size: 38 x 13.50
  • Wheel Size: 20 x 10
  • Back Spacing: 4.5 - 5 Inch
  • Max Tire Size: 38 x 13.50

The Zone Offroad 6in radius arm lift systems comes complete with everything needed to complete the install allowing for improved ride quality and performance with clearance for 38in tires. Up front the truck will receive a full length replacement coil springs designed specifically to offer improved on-road/off-road performance with the weight of the diesel Super Duty (gas truck kits will be 10 soon). To reposition the front end and correct caster a pair of heavy duty replacement radius arms that bolt in place of the factory stamped steel arms. These arms are built from high strength 1/4in steel, boxed and fully welded with large 2.5in greaseable bushings to isolate road vibrations. Steering correction comes from a forged drop pitman arm to improve operating angle while a massive 1/4in steel fabricated track bar drop bracket is used to recenter the front end and keep the steering linkage angles in phase for predictable handling. Also included for the front of this 6in lift kit are sway bar relocation brackets to correct sway bar operating angle, brake line drop brackets to reposition the factory lines, bump stop extensions to control suspension compression and new steering stabilizer mounts to improve operating angle for more effective use of the supplied larger nitro steering stabilizer cylinder. In the rear these kits retain the factory leaf springs and overloads so your truck maintains its tow capability. In place of the factory lift blocks Zone Offroad supplies a 6in rear block and u-bolt kit to level the stance. F250 models with the 2-leaf main rear springs also receive an add-a-leaf kit for an additional boost to level the stance. Rear brake line brackets are supplied. As with all Zone Ofroad kits these include Factory Protection Plus for peace of mind wherever you may adventure. Get more from your 2017 Super Duty with room for 38in tires.

Brand: Zone OffRoad

  • 2017 Ford F250 F350
