ZoneOffRoad 2010-2013 Dodge Ram 2500 3500 5" Suspension System With Free Boot Protectors D16N/ZONU3100X4 | Auto Parts Toys

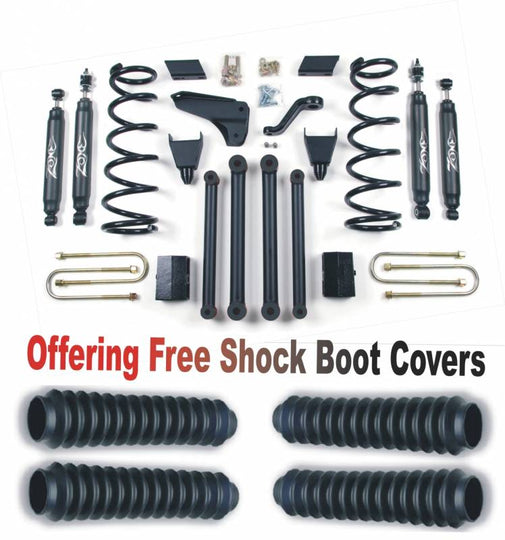

Note: FREE SHOCK BOOT COVERS

Featured Technology & Benefits:

  • Heavy duty greasable control arms included
  • New extended length bump stop mounting brackets
  • Track Bar Relocation to properly center your axle
  • Pitman Arm included to maintain steering geometry
  • Completely Bolt on System

Notes:

  • 2013 Ram 3/4 Ton: Only works with 4 link equipped front suspension models.
  • This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
  • This system will not fit dually applications due to the rear u-bolt size.
  • 2-piece rear driveshaft requires carrier bearing drop kit D5505.
  • Gas models may sit approximately 1/2" higher than the advertised lift height.
  • Kit includes a 3" rear block kit. Measure your truck before ordering to determine the stance of your truck with the lift installed.
  • Powerwagon models came factory with a 2" taller ride height so the net lift gain will be 3" over the factory Powerwagon. Powerwagon models require sway bar link kit D5301.

Quick Specs

  • Front Lift Height: 5″
  • Front Lift Method: Coil Springs
  • Rear Lift Height: 3″
  • Rear Lift Method: Block Kit
  • Install Time Hrs: 6
  • Difficulty Level 1-5: 2
  • Wheel Size: 17 X 9
  • Back Spacing: 5″
  • Max Tire Size: 36 X 12.50

The Zone Dodge Ram 1500 pickup 6" Suspension Kit System for 2009-2011models is centered around two main crossmembers that are locked together with a substantial differential skid plate. CNC machined steering knuckle correct steering geometry while reducing installation time. Strut top spacers are used to lift the vehicle and maintain the factory ride. Strut dissaseembly is only required if the optional preload spacers included in the kit are used. The rear is lifted with new Zone coil springs, track bar relocation and a rear four link relocation system. Two rear lift height options are 10 and when combined with the included optional front pre-load spacers, really allows you to fine tune the stance of your truck.

Brand: ZoneOffRoad

  • 2010-2013 Dodge Ram 2500 3500
