Note: Will Only Fit 4-1/8 axle

Note: FREE SHOCK BOOT COVERS

Features:

  • Heavy duty greasable control arms included
  • New extended length bump stop mounting brackets
  • Track Bar Relocation to properly center your axle
  • Pitman Arm included to maintain steering geometry
  • Completely Bolt on System

Notes:

  • 2013 Ram 3/4 Ton: Only works with 4 link equipped front suspension models.
  • This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
  • This system will not fit dually applications due to the rear u-bolt size.
  • 2-piece rear driveshaft requires carrier bearing drop kit D5505.
  • Gas models may sit approximately 1/2in higher than the advertised lift height.
  • Kit includes a 3in rear block kit. Measure your truck before ordering to determine the stance of your truck with the lift installed.
  • Powerwagon models came factory with a 2in taller ride height so the net lift gain will be 3in over the factory Powerwagon. Powerwagon models require sway bar link kit D5301.

Quick Specs

  • Front Lift Height: 5 Inch
  • Front Lift Method: Coil Springs
  • Rear Lift Height: 3 Inch
  • Rear Lift Method: Block Kit
  • Install Time Hrs: 6
  • Difficulty Level 1-5: 2
  • Wheel Size: 17 X 9
  • Back Spacing: 5 Inch
  • Max Tire Size: 36 X 12.50

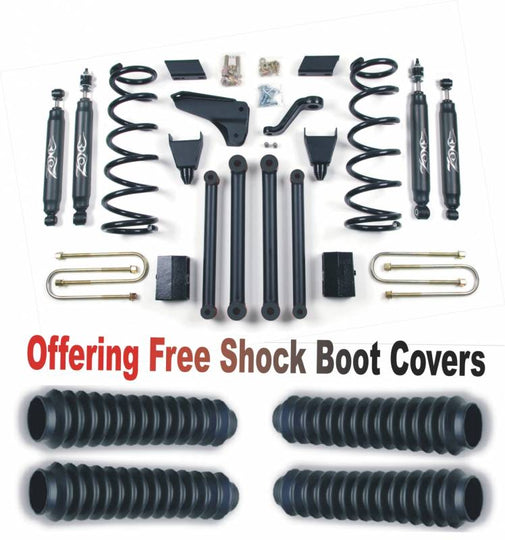

This Zone Offroad 4-link system replaces the weak upper and lower factory control arms with greasable DOM tubular arms. The arms mount in the factory control arm pockets for a completely bolt on easy installation that aligns to factory specs. Zone Offroad has engineered their coil springs for a comfortable ride on both gas and diesel trucks. Custom valved black nitrogen gas charges shock for that performance handling feel. To correct the steering geometry and keep your axle centered, the kit includes a dropped pitman arm and 1/4in thick fabricated track bar bracket that you will not be disappointed with! The kit also includes sway bar drop brackets and if you get serious, taller bump stops. The rear is lifted with 3in blocks to give your truck a more level stance and make for a quick installation.

Brand: Zone OffRoad

  • 2010-2012 Dodge Ram 2500
