ZoneOffRoad 2009-2013 Ford F150 2WD 6" Suspension System With Free Boot Protectors F20N/ZONU3100X4 | Auto Parts Toys

Note: With Free Shock Boot Covers

Features:

  • Black Shock Boot Covers, To Protect Shock From Dust and Debris Included Free Of Charge With This Purchase.
  • Custom Valved Replacement Coil-over Strut
  • CNC Machined Steering Knuckles correctly drilled for the application
  • Heavy 1/4" thick crossmembers
  • No Track Width Change

Notes:

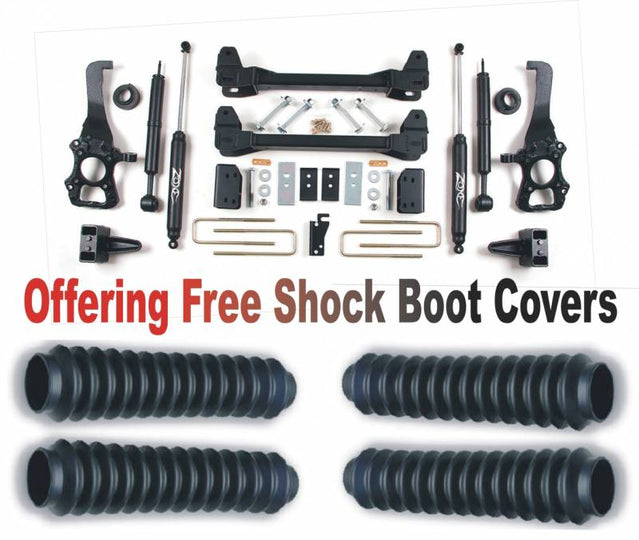

  • *Kit images show upgraded Nitro (black) shocks*
  • Vehicles equipped with factory powersteps will require E-Brake Relocation Bracket F5608 listed in the accessories.
  • Will not work with 17" wheels.
  • If using 18x9 wheels with 5.5" backspace, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
  • Certain models with a 2-piece rear driveshaft may require carrier bearing drop kit D5405.
  • Although rare, rear driveshaft extension part # F5601 may be required.
  • Kit includes a 5" rear block kit (#F2619) that typically nets a slight tail high stance. A 4" rear block kit (#F2419) is 10 in the options if a more level stance is preferred.
  • Will not fit Raptor models

Quick Specs

  • Front Lift Height: 6″
  • Front Lift Method: IFS w/Struts
  • Rear Lift Height: 5″
  • Rear Lift Method: Block & U-bolt Kit
  • Install Time Hrs: 8
  • Difficulty Level 1-5: 3
  • Wheel Size: 18 x 9
  • Back Spacing: 5″
  • Max Tire Size: 37 x 12.50
  • Wheel Size: 18x9
  • Back Spacing: 4.5″-5″
  • Max Tire Size: 35 x 13.50
  • Wheel Size: 20 x 9
  • Back Spacing: 5″-5.5″
  • Max Tire Size: 37 x 12.50

This 4" system features new front leaf springs that are designed to not only ride great, but will hold up to the abuse super duty trucks are made for. Progressively valved shocks are designed to increase offroad performance and provide excellent ride quality. A heavy duty track bar is used to center the front axle and makes the kit much easier to install than a track bar bracket system. A 3" block is supplied for the rear to level the vehicle. This is the easiest installation and best value on the market for a 4" system.

Brand: ZoneOffRoad

  • 2009-2013 Ford F150
