Note: FREE SHOCK BOOT COVERS

Features:

  • One piece 1/4"" steel crossmembers
  • Designed based on the factory geometry to acheive factory like ride quality and handling
  • CNC machined ductile iron steering knuckles
  • Not some cheap import - Over 95% made in America with quality North American Steel
  • Rear block kit for easy installation

Notes:

  • Torsion bar unloading/loading tool required.
  • To reduce trimming on new body style HD's 20"" wheels with 5 3/4"" backspacing recommended.
  • Gas models required minor exhaust modification to clear front driveshaft.
  • Although unusual, some models with a carrier bearing may experience driveline vibration. If this occurs, order appropriate carrier bearing drop listed in the accessories.
  • Not designed for dually models

Quick Specs

  • Front Lift Height: 6 Inch
  • Front Lift Method: IFS Knuckle & Bracket Kit
  • Rear Lift Height: 5 Inch
  • Rear Lift Method: Block Kit
  • Install Time Hrs: 6-8
  • Difficulty Level 1-5: 3
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5
  • Max Tire Size: 35 X 12.50
  • Wheel Size: 17 or 18 x 9
  • Back Spacing: 5-5.5
  • Max Tire Size: 35x12.50
  • Wheel Size: 20 x 9
  • Back Spacing: 5.75
  • Max Tire Size: 35x12.50

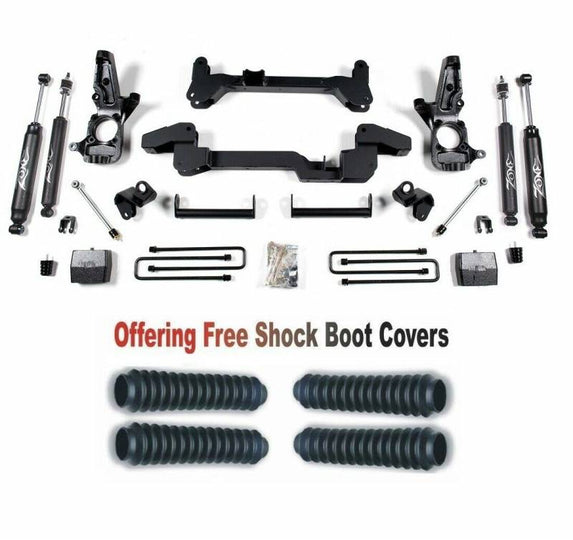

The Zone Offroad Products 6"" suspension lift kit for 2001-2010 Chevrolet/GMC Heavy Duty 2wd pickup trucks is built for everyday driving but sturdy enough for offroad abuse. The one piece main crossmembers in combination with the CNC machined ductile steering knuckles match the factory geometry for excellent ride and handling. The crossmembers are locked together with strut braces to acheive ideal subframe strength for the heavy duty use of your truck. Complete with torsion bar brackets, sway bar links, rear blocks, u-bolts and twin tube hydraulic shocks for a smooth ride. If quality, performance and value are what you demand, then look no further.

  • UPC: 655623719244
  • Brand: Zone OffRoad
  • 2001-2010 Chevrolet Heavy Duty
  • 2001-2010 GMC Heavy Duty
