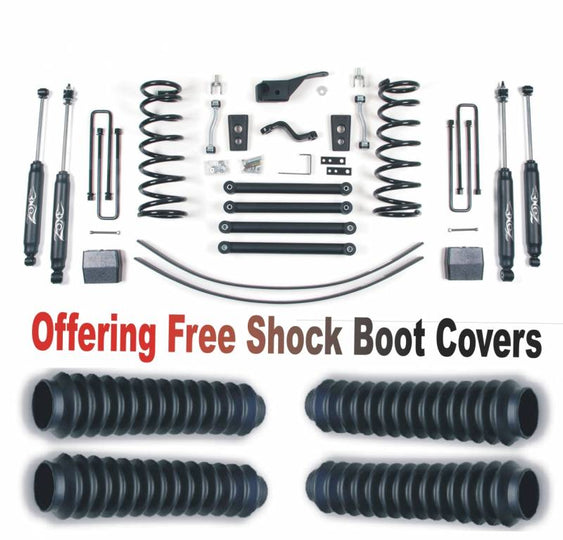

Note: FREE SHOCK BOOT COVERS

Featured Technology & Benefits

  • Black Shock Boot Covers, To Protect Shock From Dust and Debris Included Free Of Charge With This Purchase.
  • Heavy duty greasable control arms included
  • Extended length urethane bump stops
  • Track bar relocation to properly center your axle
  • Pitman arm included to maintain steering geometry
  • Completely bolt on system

Notes:

  • Aftermarket steering stabilizer required. Factory drag link mount taper will be flipped when dropped pitman arm is installed. Order proper Zone stabilizer listed in accessories if replacement is needed.
  • If truck is equipped with rear brake proportioning valve, proportioning valve relocation bracket kit (D5509) is required.
  • Will not fit models built before February 9, 1994 due to track bar stud size.
  • Factory block is replaced with 5" block and add-a-leaf combo to obtain a level stance.
  • These models came equipped from the factory with two different factory sway bar link setups. For models that have the factory front sway bar links mounted ABOVE the axle bracket, optional sway bar link kit D5501 is required. For models that have the factory front sway bar links mounted BELOW the axle bracket, no additional sway bar link kit is required.
  • If equipped with rear top mounted overload springs 4 of u-bolt part # UBT4050 may be required.
  • If vehicle is equipped with a factory rear sway bar, optional rear sway bar link kit # D5508 is recommended.
  • Models equipped with a 2 piece rear driveshaft and carrier bearing will require optional carrier bearing drop kit # D5505

Quick Specs

  • Front Lift Height: 5″
  • Front Lift Method: Coil Springs
  • Rear Lift Height: 3″
  • Rear Lift Method: 5″ Block & Add-a-leaf
  • Install Time Hrs: 5-6
  • Difficulty Level 1-5: 2
  • Wheel Size: 16 x 8
  • Back Spacing: 4″
  • Max Tire Size: 35 x 12.50

Turn your 1994-2001 Dodge 1500 into the truck you've always wanted! This 5" system features upper and lower extended heavy-duty control arms with greasable polyurethane bushings to properly center the axle and correct caster. The dropped pitman arm combined with the heavy duty track bar bracket corrects the steering geometry and centers the axle. Whether on road or offroad this system is built to perform including custom valved Zone shocks that have been tuned to the full height 5" coils as well as extended polyurethane bump stops. This system also uses replacement sway bar links to eliminate any binding at the stem and correct sway bar geometry. In the rear, a 5" rear block and add-a-leaf is used to replace the factory block, no stacking in this system.

  • UPC: 655623718797
  • Brand: ZoneOffRoad
  • 1994-2002 Dodge Ram 2500 3500
