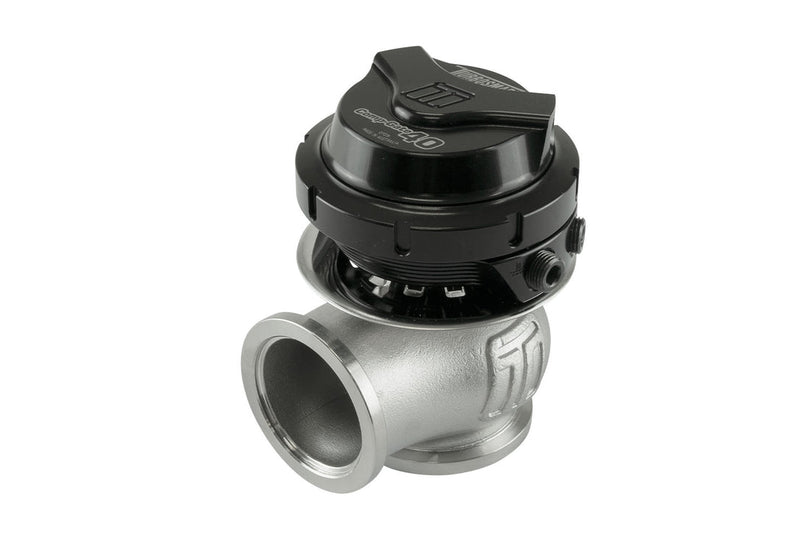

Turbosmart GenV CompGate40 External Wastegate 14psi Sleeper TS-0552-1015

Features:

• Class Leading, Thermal Performance
• Class Leading, CFD and Bench-Validated Flow Performance
• Class Leading Fatigue Resistance
• Nitronic 60 Valve Guide and High Temp 347 SS Body
• 17/7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps

In The Box:

• GenV Wastegate Unit
• All Springs Included
• (3,5,7,14 (1 Inst. As per Desciption)
• GenV SS316 Valve Seat
• Strap Style V-Bands
• Inlet & Outlet Weld Flanges
• Hose Tail & Blank Fitting Kit
• Turbosmart Decal

The GenV WG40 CompGate40 External Wastegate is a Motorsport-proven, cost-effective external wastegate - The highest-flowing wastegate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV Range has more features, options and performance than any other gate. The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Brand: Turbosmart
