Note: If The Ford F-250 Or F-350 Super Duty Is Equipped With A 2-piece Rear Drive Shaft, A Carrier Bearing Spacer Is Required. Part # 9649. This Lift Kit Is Packaged With Rear Blocks And U-bolts That Are Configured For The Ford F-250 And F-350 Super Duty With The Factory 1-7/8" Blocks Without Top Mount Overloads. If Your Ford Is Equipped With The Factory 3.71" Block Or Top Mounted Overloads, A Longer Rear U-bolt Will Be Required. For Super Dutys Equipped With The 1-7/8" Blocks And Top Overloads, Part # 11724 Will Need To Be Purchased In Addition To The Lift Kit. If The Truck Is Equipped With The 3.71 inch � Block And The Top Mount Overloads, Part # 11734 Is Required.

Features:

  • Replacement Front Coil Springs Improve Ride Quality While Rear Blocks Maintain Load Capacity
  • Radius Arm Lowering Brackets
  • Front Compression Travel-stop Brackets Prevent Suspension Over-compression
  • Track Bar Relocation Bracket Prevents Stud Bind, Resulting Roll And Yaw, And Steering Wheel Kick
  • Threaded Front Anti-sway Extensions Do Not Require Cutting Or Welding.
  • Front And Rear inch “ Superlift Shocks | Bilstein 5100 Series Shocks
  • Backed By Our Limited Lifetime Warranty
  • This Is A Complete Coil Spring Replacement Radius Arm Suspension Lift Kit For The 2011-2016 Ford F-250/f-350 4wd inch “ Diesel Engin
  • Provides 4 inch � Lift Height
  • Includes Track Bar Bracket And Related Brackets, Rear Blocks, Front And Rear Superlift Shocks Or Front And Rear 5100 Series Bilstein Shocks
  • This Kit Also Has A King Shocks Coilover Shock Option

Benefits:

  • Aligns To Oem Specifications
  • Maintains Ride Quality And Handling Characteristics

Include:

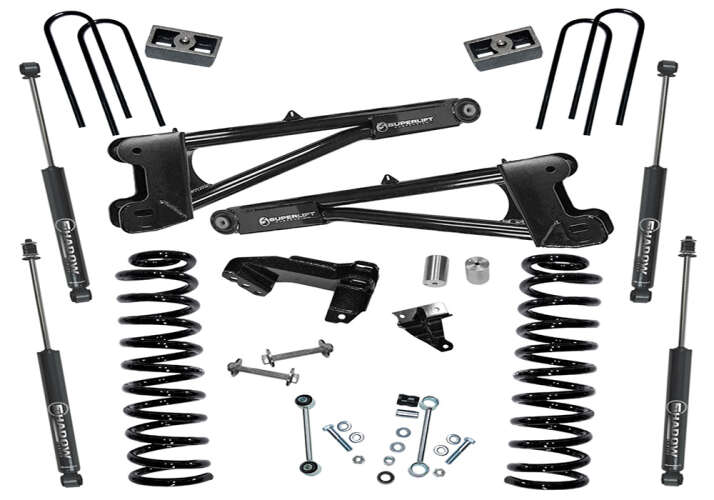

  • Front coil springs, track bar bracket, replacement radius arms, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2011-2016 4wd Ford F-250/F-350 DIESEL Engine.
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
This 4 inch � Lift for the 2011-2016 Ford Super Duty F-250 | F-350 4WD features Superlifts engine specific coil springs to ensure proper lift height and maintain factory ride quality. Radius arm lowering brackets are used to restore proper caster angle and alignment. Other components included with this 4-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket. Rear lift is acheieved by 2.5 inch blocks. OEM CAD models and the latest 3D design software were used to precision engineer a suspension system that includes a track bar relocation bracket, front sway bar correction, bump stop extension brackets, brake hose relocation brackets. Complete your 4-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market. Shocks for this kit are available in the following: Superlift | Bilstein 5100 Series

Brand: Superlift

  • 2011-2016 Ford F-250 Super Duty
  • 2011-2016 Ford F-350 Super Duty
