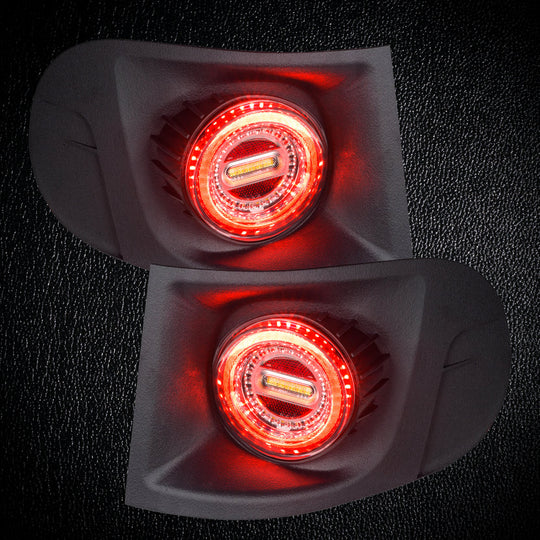

Oracle Lighting 2007–2014 Toyota FJ Cruiser Flush Mount LED Tail Lights 8212-504

Features:

• Vehicle-specific fitment for 2007–2014 Toyota FJ Cruiser
• Flush-mount design creates a clean, low-profile appearance
• Red LED running and brake light functions
• Amber LED turn signal function
• White high-output LED reverse lighting
• Up to 6,720 effective lumens of combined output per side
• Maximum power output of 84 watts per side
• Wide flood-pattern reverse beam
• Improved illumination when reversing at night or off-road
• Reduced exposure to trail obstacles compared with protruding factory lights
• Durable automotive-grade ASA outer housings
• Die-cast aluminum LED module housings
• UV-resistant polyester powder-coated module finish
• Impact-resistant polycarbonate optical lenses
• IP68 protection against dust and water ingress
• Overvoltage protection
• Wide-range 9–32V DC operation
• LEDs rated for up to 50,000 hours
• Designed and engineered in the USA
• Primary housing components manufactured and assembled in the USA
• Backed by a 2-year warranty

Includes:

• One driver-side Flush Mount LED Tail Light
• One passenger-side Flush Mount LED Tail Light
• Load Equalizers
• LED lighting modules
• Required installation hardware
• Installation instructions
• ORACLE Lighting 2-year warranty

Performance & Technical Specifications:
High-Output LED Illumination

• Each tail light delivers up to a total of 6,720 max lumens of combined output, providing bright, clearly visible brake, running, turn signal, and reverse functions.

Wide-Beam Reverse Lighting:

• The dedicated white reverse LEDs produce a broad flood pattern that illuminates a wider area behind the vehicle. This improves visibility when reversing, maneuvering around obstacles, or navigating dark trails.

Flush-Mount Trail Protection:

• The low-profile design keeps the tail lights closer to the FJ Cruiser’s body, helping reduce their exposure to branches, rocks, and tight trail obstacles while giving the vehicle a cleaner and more modern rear appearance.

Rugged Multi-Material Construction:

• The ASA outer housing provides excellent resistance to sunlight, heat, moisture, and environmental exposure. The lighting modules use powder-coated die-cast aluminum housings for strength and heat dissipation, paired with durable polycarbonate lenses.

Built for Harsh Environments:

• An IP68 protection rating helps prevent dust and water intrusion. Integrated overvoltage protection and a 9–32V DC operating range provide additional electrical durability.

Built in Metairie, Louisiana, USA

• These tail lights were designed and engineered in the USA. The primary housing components are physically manufactured, and final assembly and inspection are completed by ORACLE Lighting in Metairie, Louisiana.

Technical Specifications:

• Vehicle fitment: 2007–2014 Toyota FJ Cruiser
• Product type: Flush Mount LED Tail Light Assembly
• Lighting functions: Running light, brake light, turn signal, and reverse light
• LED colors: Red, amber, and white
• Maximum output: Up to 6,720 lumens per side
• Maximum power: 84W per side
• Reverse beam pattern: Wide flood beam
• Operating voltage: 9–32V DC
• LED lifespan: Up to 50,000 hours
• Environmental rating: IP68
• Outer housing material: Automotive-grade ASA
• LED module housing: Die-cast aluminum
• Module housing finish: UV-resistant polyester powder coating
• Optical lens material: Durable polycarbonate
• Electrical protection: Overvoltage protection
• EMC standard: CISPR 25 Class 4 and FCC Part 15B
• Certifications listed: CE, RoHS, and E-mark
• Design and engineering: USA
• Manufacturing and assembly: Primary housing components manufactured and assemblies completed at ORACLE Lighting in Metairie, Louisiana
• Warranty: 2 years
• Quantity: Pair, driver and passenger side

The ORACLE Lighting Flush Mount LED Tail Lights transform the rear profile of the 2007–2014 Toyota FJ Cruiser with a clean, vehicle-specific design that follows the original body lines. The low-profile construction sits tighter against the vehicle than the factory tail lights, creating a modern OEM+ appearance while reducing exposure to branches, rocks, and other trail obstacles.

Each side produces up to 84 watts from high-output red, amber, and white LED modules. The dedicated wide-beam reverse lighting provides a broad flood pattern that improves rearward visibility when backing up at night, navigating a dark trail, connecting a trailer, or setting up camp.

The vehicle-specific outer housings are manufactured from ASA, a durable automotive-grade material selected for its excellent resistance to UV exposure, weathering, heat, and impact. Inside, the lighting modules use die-cast aluminum housings with UV-resistant polyester powder coating for effective heat management and long-term durability. Polycarbonate optical lenses provide additional impact resistance while protecting the LEDs from the elements.

With an IP68 rating, 9–32V DC operating range, overvoltage protection, and automotive-grade EMC performance, these tail lights are built for dependable operation in demanding environments. The LEDs are rated for up to 50,000 hours of service life.

The primary housing components are physically manufactured, and each tail light assembly is completed at ORACLE Lighting’s facility in Metairie, Louisiana. This allows ORACLE to maintain direct control over fitment, assembly, and quality inspection.

ORACLE’s existing Flush Mount language emphasizes low-profile OEM+ styling, improved rear-angle visibility, trail protection, and enhanced reverse illumination; those themes are carried into this FJ Cruiser version.

Brand: Oracle Lighting

• 2007–2014 Toyota FJ Cruiser
