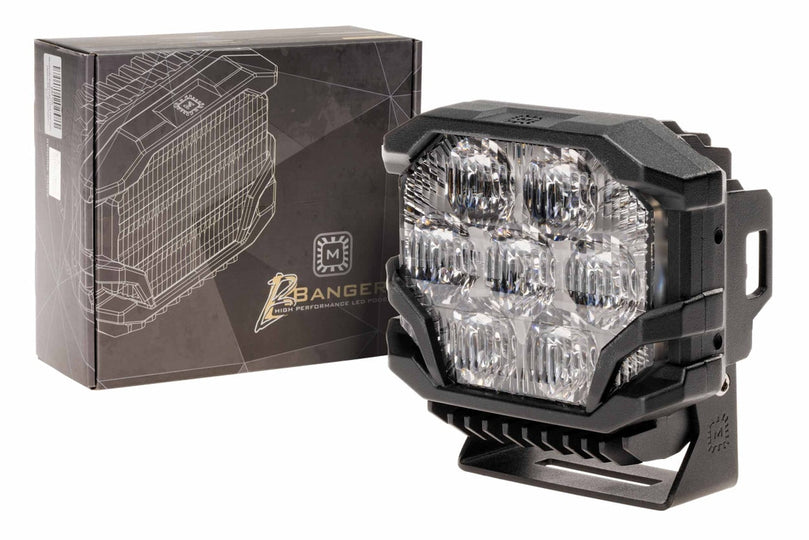

Morimoto BigBanger LED Pods NCS Combo Beam Yellow Each BAF121Y

Features & Benefits:

• NCS Combo Beam: Powerful illumination with hotspot, wide coverage, and vertical flood.
• Nichia LEDs: Reliable, intense performance with modern Nichia LEDs.
• Easy Installation: Quick setup with a universal mounting bracket.
• Custom Light Bar: Tailor your lighting with optional BangerBar links.
• Amber Back Light: Safety ensured with dimming at night for oncoming traffic.

Includes:

• LED Pod : 1x Morimoto BigBanger NCS Combo Beam (Sold Individually)
• Bracket : 1x Surface Mount Bracket
• Hardware : 2x M10x1.5 SS Carriage Bolts, 2x M10 SS Washers, 2x M10 SS Lock Nuts, 8x M6x1.0 SS Screws
• Optional Wiring : 1x Morimoto Switched Relay Harness or Pigtail

Specifications:

• Note : These specifications are per pod / each!
• Intensity (White) : 115,000 Cd (1,150 lux @ 10m)
• Intensity (Yellow) : 82,500 Cd (825 lux @ 10m)
• Beam Pattern : 46 x 15
• Input Voltage : 9-18V DC
• Current (@ 13.5V DC) : 2.74A (Stabilized), 3.33A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)
• Peak Luminosity (raw) : 3,150lm
• Dimensions : 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D, 3lb 11oz / 1.7kg (w/ all hardware)
• Color : 2400K (Yellow) or 5600K (White)
• Light Source : 7x Nichia NCSY131F or Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight)
• Input : Integrated Deutsch DT 4-Pin
• Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Compatibility:

• Universal : With Included Standard Bottom Mount Brackets

Introducing the Morimoto BigBanger LED Pods -- your ultimate off-road lighting solution! These pods are more than just powerful; they redefine performance, reliability, and versatility in the world of automotive lighting. At the heart of the BigBanger's prowess lies the NCS Combo Beam pattern, which ensures exceptional illumination in all directions. Its powerful hotspot, wide coverage, and vertical flood combine for unmatched visibility on the trail. Plus, with modern LEDs from Nichia, you can count on intense and reliable performance, no matter where your adventures take you. But that's not all! The BigBanger Pods offer a universal mounting bracket for hassle-free setup on any flat surface. The optional BangerBar links allow you to create a custom light bar, tailoring it to your exact specifications. For added convenience, these pods feature an integrated Amber Back Light that dims at night, preventing glare for oncoming traffic. And when it comes to reliability, the BigBangers are built tough, with copper DTP PCBs, weather-resistant design, and proprietary components.

Brand: Morimoto
