KC Hilites Profile 30" LED Light Bar 98163

Features:

• High-Power Modes
  • White
  • Amber
  • ColorBlend (White + Amber)
• ColorBlend™ Mode
  • Activates the White and Amber LED circuits simultaneously at full output to create a bright, warmer blended light.
  • Wiring Note: When connecting Profile light bars to an aftermarket switch system or factory upfitter switches, size the fuse, relay, and wiring for the White and Amber circuits individually based on each circuit’s specified amperage. ColorBlend does not require a separate circuit; it is created by activating both circuits at the same time.
  • Any power source or switch system must support the combined White + Amber current draw when ColorBlend is active.
• Straight or Curved Configurable
  • The light bar can be set up in either a straight or curved configuration by simply flipping the linker bracket, allowing you to match bumper design and vehicle contours without purchasing a different bar.
• Panoramic, tall beam pattern that provides visibility beyond the edges of the trail
• Deep-channel, hidden wire management for clean internal routing of wiring on the back of the bar

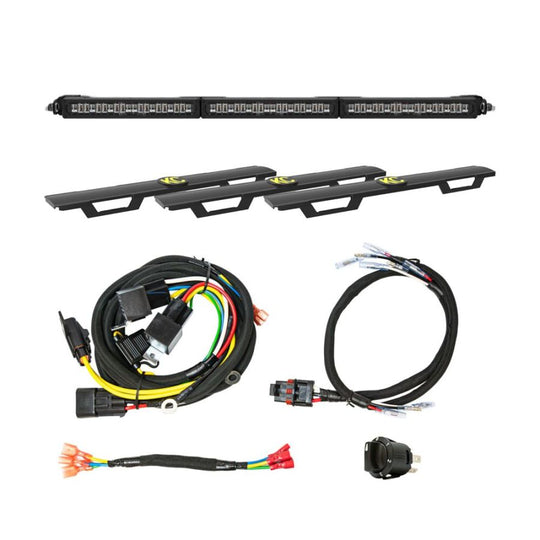

In The Box:

• (3) KC Profile™ 10" LED Light Bar
• (2) Linker Bracket and Hardware
• Universal Mounting Brackets and Hardware
• Complete Wiring Kit with 4-Position Rotary Switch

Specifications:

• SKU: 98163
• Weight: 10.000000
• Wattage Per Light: 63.36 w (White) / 44.28 w (Amber) / 107.64 w (ColorBlend)
• Total Wattage: 190.08 w (White) / 132.84 w (Amber) / 322.92 w (ColorBlend)
• Amp Draw Per Light: 5.28 a (White) / 3.69 a (Amber) / 8.97 a (ColorBlend)
• Total Amp Draw: 15.84 a (White) / 11.07 a (Amber) / 26.91 a (ColorBlend)
• Voltage: 9V - 36V
• Lumens Per Light: 4,824 lm (White) / 2,988 lm (Amber) / 7,812 lm (ColorBlend)
• Total Lumens: 14,472 lm (White) / 8,964 lm (Amber) / 23,436 lm (ColorBlend)
• Lux Per Light: 219 lx (White) / 66 lx (Amber) / 283 lx (ColorBlend)
• Total Lux: 657 lx (White) / 197 lx (Amber) / 849 lx (ColorBlend)
• Candela Per Light: 21,915 cd (White) / 6,572 cd (Amber) / 28,322 cd (ColorBlend)
• Total Candela: 65,745 cd (White) / 19,716 cd (Amber) / 84,966 cd (ColorBlend)
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: Amber / White
• Beam Pattern: Combo
• Beam Distance: 256 m (White) / 140 m (Amber) / 291 m (ColorBlend)
• Light Technology: LED
• Package Options: Includes Covers, Includes Mounts/Brackets, Includes Wiring, Includes Switch
• Mount Location: Bumper
• Size of Products: 30"
• Material: ADC12 Aluminum
• Product Finish: Automotive Grade Textured Paint
• Color: Black
• Product Dimensions: W: 31.375 " x H: 1.5 " x D: 2.44 "
• UPC: 084709981631
• IP Rating: IP68
• Condition: New

Linkable & Modular
The Profile platform is engineered to grow with your build. Built around a linkable and modular architecture, multiple 10" segments can be connected to create custom lighting configurations up to 40". Choose straight or curved layouts to match your vehicle’s contours and expand your lighting system over time.

ColorBlend Technology
Integrated ColorBlend technology provides three selectable high-power modes. Select White mode for bright visibility in clear conditions. Select Amber mode for a warm, low-glare beam ideal for dust, fog, snow, and other low-visibility environments. Activate ColorBlend mode to run both White and Amber at full power simultaneously, delivering a blended output that maximizes contrast, depth perception, and trail definition in mixed terrain.

Designed for modern builds where space and integration matter, the Profile™ 30" single-row light bar delivers purposeful lighting with increased horizontal coverage in a refined package. Its slim housing allows installation in bumper cutouts, tight grille openings, and custom fabrication projects where traditional light bars don’t fit.

The Profile 30" enhances trail visibility while maintaining a clean, low-profile appearance. Whether mounted as a standalone solution or integrated into a larger lighting system, Profile keeps your front end clean and delivers outstanding performance.

Brand: KC Hilites
