KC Hilites Profile 10" LED Light Bar 98161

Features:

• High-Power Modes
  • White
  • Amber
  • ColorBlend (White + Amber)
• ColorBlend™ Mode
  • Activates the White and Amber LED circuits simultaneously at full output to create a bright, warmer blended light.
  • Wiring Note: When connecting Profile light bars to an aftermarket switch system or factory upfitter switches, size the fuse, relay, and wiring for the White and Amber circuits individually based on each circuit’s specified amperage. ColorBlend does not require a separate circuit; it is created by activating both circuits at the same time.
  • Any power source or switch system must support the combined White + Amber current draw when ColorBlend is active.
• Panoramic, tall beam pattern that provides visibility beyond the edges of the trail
• Deep-channel, hidden wire management for clean internal routing

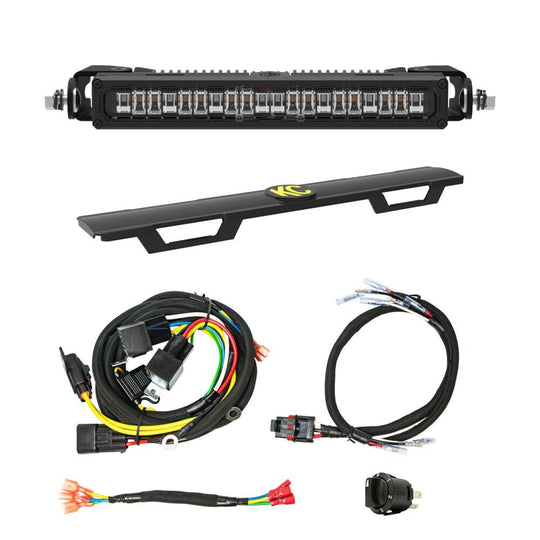

In The Box:

• (1) KC Profile™ 10" LED Light Bar
• Universal Mounting Brackets and Hardware
• Complete Wiring Kit with 4-Position Rotary Switch

Specifications:

• SKU: 98161
• Weight: 6.000000
• Wattage Per Light: 63.36 w (White) / 44.28 w (Amber) / 107.64 w (ColorBlend)
• Total Wattage: 63.36 w (White) / 44.28 w (Amber) / 107.64 w (ColorBlend)
• Amp Draw Per Light: 5.28 a (White) / 3.69 a (Amber) / 8.97 a (ColorBlend)
• Total Amp Draw: 5.28 a (White) / 3.69 a (Amber) / 8.97 a (ColorBlend)
• Voltage: 9V - 36V
• Lumens Per Light: 4,824 lm (White) / 2,988 lm (Amber) / 7,812 lm (ColorBlend)
• Total Lumens: 4,824 lm (White) / 2,988 lm (Amber) / 7,812 lm (ColorBlend)
• Lux Per Light: 219 lx (White) / 66 lx (Amber) / 283 lx (ColorBlend)
• Total Lux: 219 lx (White) / 66 lx (Amber) / 283 lx (ColorBlend)
• Candela Per Light: 21,915 cd (White) / 6,572 cd (Amber) / 28,322 cd (ColorBlend)
• Total Candela: 21,915 cd (White) / 6,572 cd (Amber) / 28,322 cd (ColorBlend)
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: Amber / White
• Beam Pattern: Combo
• Beam Distance: 148 m (White) / 81 m (Amber) / 168 m (ColorBlend)
• Light Technology: LED
• Package Options: Includes Covers, Includes Mounts/Brackets, Includes Wiring, Includes Switch
• Mount Location: Bumper
• Size of Products: 10"
• Material: ADC12 Aluminum
• Product Finish: Automotive Grade Textured Paint
• Color: Black
• Product Dimensions: W: 11.375 " x H: 1.5 " x D: 2.44 "
• UPC: 084709981617
• IP Rating: IP68
• Condition: New

Linkable & Modular
The Profile platform is engineered to grow with your build. Built around a linkable and modular architecture, multiple 10" segments can be connected to create custom lighting configurations up to 40". Choose straight or curved layouts to match your vehicle’s contours and expand your lighting system over time.

ColorBlend Technology
Integrated ColorBlend technology provides three selectable color modes. Select White mode for bright visibility during clear conditions. Select Amber mode for a warm, low-glare beam ideal for dust, fog, snow, and other low-visibility conditions. Finally, select the ColorBlend mode where both White and Amber turn on at high power for a blended output that maximizes output and depth perception in mixed terrain and changing conditions.

Designed for modern builds where space and integration matter, the Profile™ 10" single-row light bar delivers purposeful lighting in a refined package. Its slim housing allows installation in bumper cutouts, tight grille openings, and custom fabrication projects where traditional light bars don’t fit. Whether mounted standalone or into a larger lighting setup, Profile keeps your front end clean and delivers outstanding performance.

Brand: KC Hilites
