JMS Exhaust Gas Temp Sensor Kit Conditioning Box Hardware EGT9617NG

Features:

• Plug and play EGT Monitoring designed for all SCT Handheld Tuning Devices.
• Compatible with other brands Of tuners.
• Sealed enclosure, compact design.
• Stainless Steel EGT probe with a dual-ferrule compression fitting and 1/8" NPT thread.
• RFI shielded EGT Probe cable and industry standard K-type EGT connector.
• Two versions available DB9 to Firewire cable or encapsulated Firewire cable.
• Easy to setup and use.

The JMS Exhaust Gas Temperature Sensor Kit works with all SCT Handheld tuners and utilizes the standard FireWire analog input connector found on their devices. Exhaust Gas Temperature is a critical element in performance tuning. Monitoring EGT readings are essential to eliminating engine failures that result from excessive heat.

TECHNICAL SPECIFICATIONS
SIMPLE INSTALLATION:

• Plug and Play firewire Wiring harness.
• Connects to your existing SCT Handheld Tuning Device Via included firewire cable.
• Works with any vehicle monitoring device that can read a DC signal.

CASE DIMENSIONS:
Black Rubberized Case with two mounting holes.

• LENGTH: 1 7/8"
• WIDTH: 1 3/8"
• HEIGHT: 5/8"

OVERVIEW:
The JMS EGT Kit has been designed to accurately condition a a mplify the signal from a Type "K" EGT probe. Installation Configuration is simple. On a SCT HandheldTuning Device, plug in the Firewire Cable, connect the EGT Probe and configure the analog input. To use with any other brands Of tuner, wire in the device and configure the analog.
EGT OUTPUT VOLTAGE RANGE:

• OV-5VDC

VEHICLE COMPATIBILITY:

• Compatible With 5v (VCC) or 12V battery Systems
• pn: 96174 - DB9 to Firewire (can be powered via 5v or 12v)
• pn: 96178 • Encapsulated Firewire (powered by 5v only)

PEVICE INPUTS & OUTPUTS;
K Type Thermocouple Connector
9617-A utilizes a Female DB-9 connector and is designed to be wired into any O-5V monitoring device.
EGT Amplifier can be powered Via 12v or 5v DC (9617-A only).
Unbuffered and Buffered 0-5V DC outputs available (9617-A only)
9617-B utilizes a encapsulated firewire for Plug & Play wiring with SCT Handheld Tuning Devices.
KIT CONTENTS:

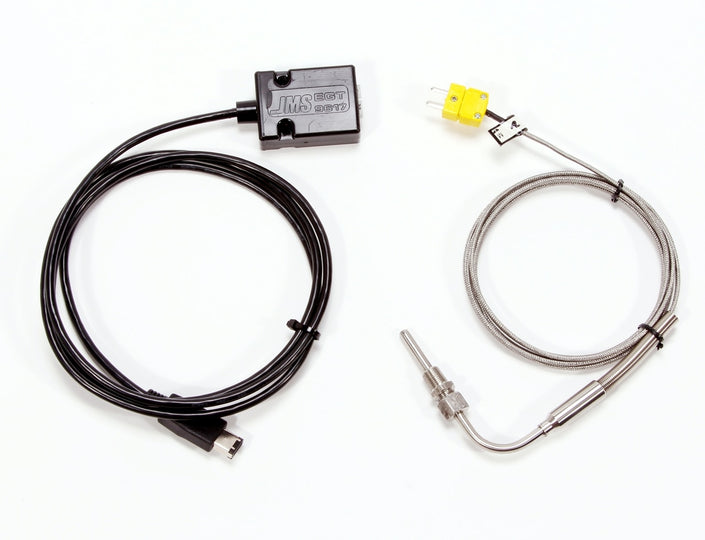

• JMS EGT Amplifier part number 9617-A or 9617-8 with 5 foot cable.
• Stainless Steel EGT probe with standard K Type connector 78 inch
• RFI shield cable and 1 '8th NPT
• Dual-ferrule compression fitting
• Installation Parts Package

INSTALLATION PARTS PACKAGE INCLUDES:

• Instructions & tie wraps

Brand: JMS
UPC: 021201227249
