JKS 2007-2018 Jeep Wrangler JK 4dr J-Krawl 3.5" Lift Kit Fox Adventure Series Shocks JSPEC151KFA

This System Includes Fox Shocks Only

Features & Benefits:

• Front+Rear Dual Rate Coil Springs designed for a great ride quality and improved performance across any terrain.

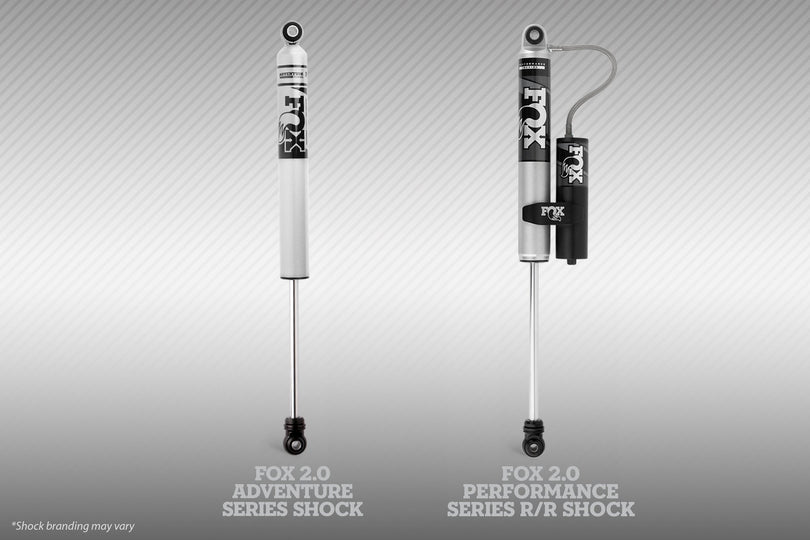

• Front+Rear FOX 2.0 gas shocks specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
• Front+Rear J-Flex Lower Control Arms for improved strength and caster correction.
• Front+Rear J-Flex Upper Control Arms for improved strength and caster correction.
• Front+Rear Bump Stop Extensions to properly limit suspension up travel.

Components:

• JSPEC2354 1 07-20 Jeep Wrangler JK J-Krawl Main Box Kit
• JKS1615 1 JK Front Adjustable UCA
• JKS1610 1 JK Front Adjustable LCA
• JKS1665 1 JK Rear Adjustable UCA
• JKS1660 1 JK Rear Adjustable LCA
• JSPEC2350 1 07-20 JK 4Dr 3.5" Coil Box Kit
• FOX98450351 2 Fox Adv Shock 25.15 x 15.55 x 2-S50/EB1
• FOX98450359 2 Fox Adv Shock 26.35 x 16.75 x 2-BP18/EB1

Tire Specs:

• Tire: 35x12.50
• Wheel: 16x8, 17x9, 20x9
• Backspacing: 4.5"
• Other tire/wheel sizes can be used, however may require additional modifications.

Important Notes:

• 2007-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
• Rubicon sway bar link hardware included in kit.
• Requires 17" or larger wheels with 4.5" BS (or smaller) for steering clearance.

Build the ultimate adventure rig with a 3.5" lift kit J-Krawl suspension system. Fits 4-Door Jeep Wrangler JK. Designed for maximum articulation and adjustability, the complete suspension system includes dual rate coil springs, adjustable front track bar, rear track bar bracket and tuned FOX shocks. The heart of the J-Krawl design is a set of J-Flex upper and lower control arms and sway bar Quicker disconnects. These systems build off Jeep€™s factory suspension mounting points and upgrades to front and rear, upper and lower J-Flex adjustable control arms for maximum articulation along with more strength for trails and rock crawling brawn along with adjustability to dial in front caster, rear pinion and overall vehicle wheelbase. In addition to eight high strength adjustable control arms, the J-Krawl system features specially designed FOX 2.0 IFP shocks to maximize travel and performance. An aftermarket front driveshaft is strongly recommended due to additional travel capable. Routine maintenance is required.

Brand: JKS

• 2007-2018 Jeep Wrangler JK
