Icon Vehicle Dynamics 2017-2022 Ford F-250 F-350 2.5-3" Stage 3 Coilover Conversion System K63143

Features & Benefits:

• Fk Rod End Bearings For Extended Longevity And Minimal Deflection
• Bolt-in System Fits In Oe Coil Bucket Location
• Ride Height Adjustable Coilovers (2.5-3")
• Decreased Body Roll And Improved On And Off-road Ride Dynamics
• Vehicle-specific Shock Valving Provides Unparalleled Ride Quality And Control
• Shocks Are Fully Rebuildable And Revalveable
• Coilover Conversion Allows For Addition Of Secondary Shock
• Corrosion Resistant Cad Plated Coilover Shock Bodies With 7/8" Shafts
• Rear Shocks Feature Anodized, One-piece Impact Extruded Aluminum Shock Bodies
• Eibach Coil Springs Guaranteed For Life Against Sagging Or Breakage

Tech Note:

• 2020-2022 Super Duty Models Have A Lower Ride Height From The Factory Than 2017-2019 Trucks. This Results In An Increase Of Approximately .75" Of Additional Lift Height Over Icon's Advertised Numbers.

Tech Info:

• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: Icon Alloys | 17x8.5" W/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: Icon Alloys | 18x9" W/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: Icon Alloys | 20x9" W/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" X 12.50" (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Application Note #6: Springs Are Rated For Diesel Engines Only
• Application Note #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Application Note #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Application Note #120: Secondary Shock Options Available, Contact Icon For More Details
• Ships In Multiple Boxes

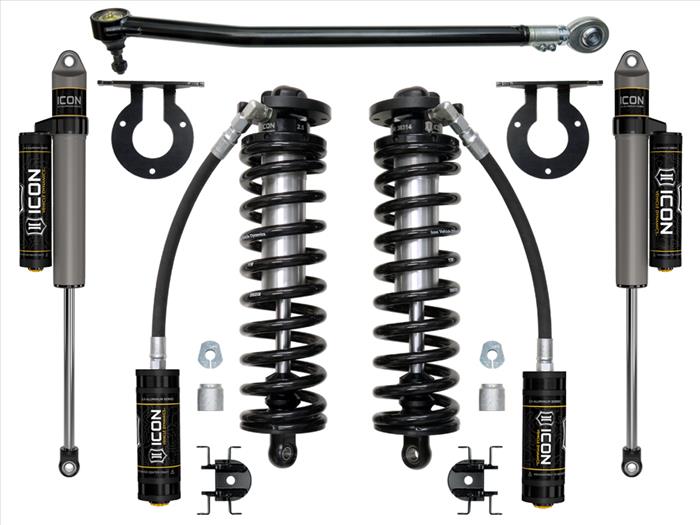

System Components:

• 61720 (Qty: 1) | 2005-2022 Fsd 4wd 2.5-3" 2.5 Vs Rr Bolt In Co Conversion Kit
• 64038 (Qty: 1) | 2017-2022 Fsd Adj Trackbar Kit
• 37705p (Qty: 1) | 1999-2022 Fsd 0-3" Rear 2.5 Vs Pb Pair

Icon's 2.5 Vs Series Remote Reservoir Bolt-in Coilover Conversion Kit Will Add A New Level Of Performance And Adjustability To 2017-2022 F-250 And F-350 Trucks. The Advantage Of Utilizing A Coilover Conversion Kit Is That They Have Been Designed To Increase The Overall Damping Ability Of The Vehicle While At The Same Time Allowing For User-defined Ride Height Adjustment. The 2.5" Remote Reservoir Coilover Featured In These Kits Is Based Off Of Icon’s 2.5 Vs Series Shock Line - Meaning That Features Like Eibach Coil Springs, Fk Rod End Bearings, And Vehicle-specific Valving Come Standard. Rear 2.5 Aluminum Series Piggyback Shocks Feature One-piece Impact Extruded Aluminum Cylinders That Offer Lighter Weight, Improved Corrosion Resistance, And A More Uniform Finish Than Traditional Plated Steel Cylinders. Quality Machined Components And A Fully Serviceable Design Make For A Product That Will Stand The Test Of Time, Yet Retain The Ability To Be Rebuilt Or Re-valved As Necessary.

Brand: ICON Vehicle Dynamics

• 2017-2022 Ford F-250 F-350
