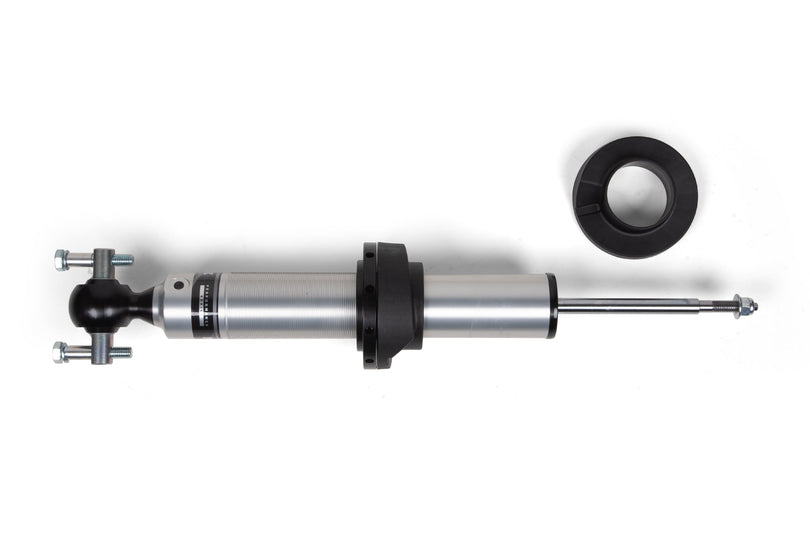

Fox 2021-2026 Ford Bronco 2.5 IFP Front Coilover 0-3 Inch Lift Performance Series HTO FOX98762000

Features:

• 2.5” Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping 5/8” hard chrome shaft
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston

Specification:

• Adjustable Damping : No
• Compressed Length : 17.2
• Extended Length : 22.71
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Code : Bar Pin
• Lower Mount Type : Bar Pin
• Position : Front
• Shaft Diameter : 5/8"
• Travel Length : 5.51
• Type : Coil-Over
• Upper Mount Code : OEM
• Upper Mount Type : OEM

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. The 2.5-inch HTO shocks for the Ford Bronco reuses the existing OE spring.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Brand: Fox

• 2021-2026 Ford Bronco
