• Modern TIR optics for the highest intensity on the market
  • Backlighting in a brilliant amber color
  • Durable powdercoated aluminum construction
  • Integrated Deutsch-style connector
  • Pin-fin heatsink design
  • Designed, torture tested and assembled in USA

In the Box:

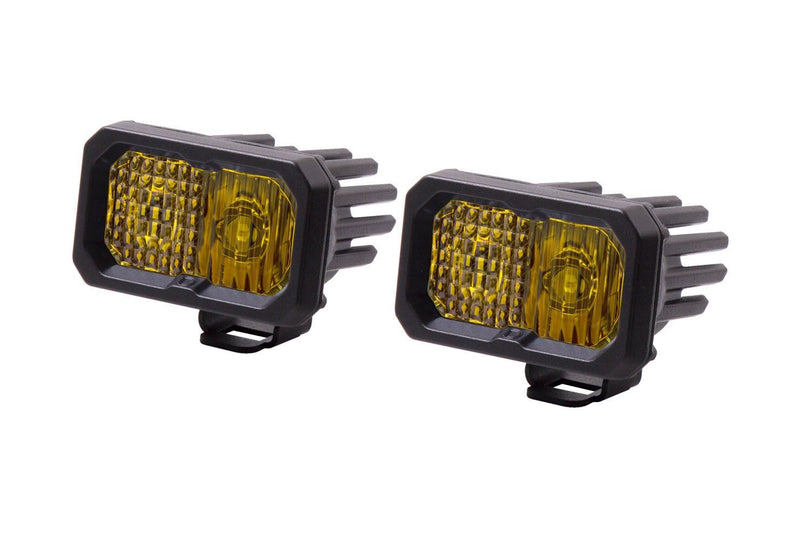

  • Two (2) Stage Series 2" LED Pods
  • Two (2) Deutsch-style wire pigtails
  • Two (2) Mounting brackets and hardware



  • Color Temp (CCT): 3000K
  • Power (watts): 25.6
  • Operating Voltage: 9-16V
  • Current (amps @ 12.8V): 2
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Cree XP-L HI
  • Connector(s): Deutsch DT Input
  • Driver Features: Constant Current
  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
  • Cooling: Passive, Pin-Fin heatsink
  • Compliance Ratings: SAE J575 Durability Test
  • Intrusion Ratings: IP67 Weatherproof

This harness has been designed to be used with Stage Series pods with backlight functionality. The harness connects directly to your vehicle's battery and features a three-way switch to toggle between backlight, off, and main beam.

​​Brand: Diode Dynamics
