Features

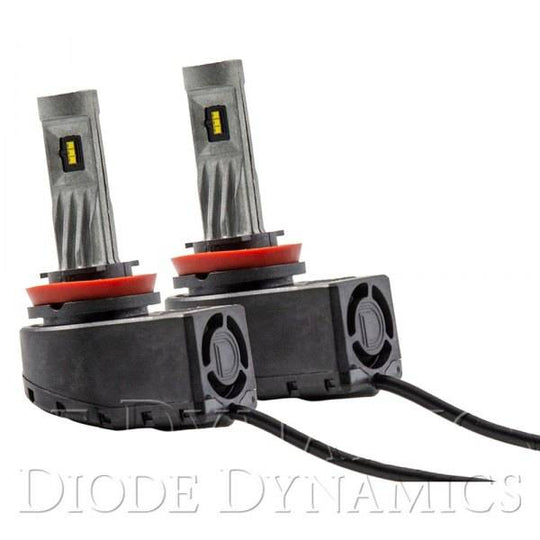

  • H11 SL1 LED Headlight Set of 4
  • Low or high beam LED headlight replacement
  • Correct optical focus for increased output with no added glare
  • Perfect H11 fitment, no modification needed
  • Designed and validated to OEM lighting standards
  • Engineered and Manufactured in USA

What's Included

  • Quantity: Single or Pair
  • Warranty: 3 year warranty
  • 100 percent Satisfaction Guarantee

Fitment

  • Bulb Size: H11
  • DRL Function: Operates at full brightness for DRL

Specifications

  • Measured Lumens: 1630 (per bulb)
  • Color Temp (CCT): 6000K
  • Power (watts): 20.2
  • Operating Voltage: 5-16V
  • Current (amps at 13.2V): 1.58
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Luxeon Z ES
  • Connector(s): OEM-Size Plug and Play
  • Driver Features: External, Waterproof, Constant Current
  • Driver Dimensions: 2.19 Inch x 1.13 Inch x 0.56 Inch
  • Materials: Copper PCB, PP-TD30 Base, Zinc Heatsink
  • Cooling: Active, Mag-Lev Microfan
  • Compliance Ratings: FMVSS108 Beam Pattern, SAE J575 Durability Test
  • Patent: US D824052

Aftermarket or OEM? If you're looking to improve visibility on your vehicle at night, you've probably found many options for LED upgrades. Most bulbs on the market are too big to install, don't work with the electrical system, and have no focus or hotspot in the beam pattern. Even if they come close on those aspects, they still aren't anything close to the quality you would find with factory-installed lighting. Like most aftermarket products, most LED bulbs are not engineered and tested for long-term reliability.

With the SL1 LED, Diode Dynamics set out to engineer a true OEM-grade solution. With its compact size, optically correct output, flow-simulated cooling, and boost-mode electrical circuit, our SL1 LED patented design is a properly-engineered solution that finally provides a true upgrade in performance, with high reliability: and it's tested and validated to meet those standards, just like OEM lighting.

Compact Size. Your order includes two bulbs, to replace the factory bulbs in your vehicle. The bulbs are compact in size, in a patented design that isn't much bigger than the original halogen bulb. The drivers are compact too! If you have a sealed headlamp, they are designed to fit inside. The drivers and bulbs are tested to last over time, even when sealed inside with the heat of the headlamp. Please note that if you are replacing a high beam / DRL bulb, the DRL function may no longer work, depending on your vehicle. Please see further information on Vehicle-Specific product listings, or contact us.

Street Legal Output. Don't be fooled by high lumen numbers or projector specific bulbs. Your vehicle's headlights are designed as a system, to focus light. If the light source in that system is out of focus, it doesn't matter how bright it is. You won't have a focused hotspot of light to shine down the road, you'll just have more glare. To correct this, the SL1 LED headlight bulb was engineered with advanced optical design software, which simulates each ray of light in a process known as ray tracing. Using this tool, our engineers perfectly matched the filament location, allowing the SL1 LED to focus light just like your original bulb, preserving the focus and hotspot, with no added glare. It produces a functional pattern on the road, with a stronger hotspot for added distance. This is a safe, functional output, in compliance with photometric standards, which we call Street Legal.

Daytime Running Light. Daytime Running Lights (DRLs) are lights that illuminate when the vehicle is running, and when all other lights are turned off. Some vehicles use the high beam bulb as the daytime running light. If your vehicle uses voltage drop for the DRL signal, the SL1 will operate at full brightness. If your vehicle uses PWM for the DRL signal, the SL1 will operate at a reduced brightness level just like your factory halogen bulb would.

Tested to Perform. We test the SL1 bulb in factory headlamps, and measure the entire beam pattern using specialized equipment. It's an elaborate affair: a headlight is mounted to a computer-controlled rotating head called a goniometer. Light shines down a tunnel, where a sensor collects data as the headlight is rotated. The entire beam pattern is mapped, and we compare the total output to the original halogen, confirming that the SL1 bulb shines more light in the hotspot, without adding extra glare on the road. The test results speak for themselves: in most lamps, like the 2015 F-150 Halogen lamp, there is 30-70 percent more light in the critical hotspot, with no added glare or spread of light. With proper optical engineering, testing, and validation in the application, we can assure correct optical performance.

Staying Cool. You may have seen bulbs that use large straps for cooling, or big fans that just make noise. These bulbs still run hot, pushing the LEDs past their limits, resulting in degradation of output after a few months. When it comes to cooling, proper engineering is required to efficiently remove heat from the bulb. In the SL1, it comes together as a whole system that was extensively tested, with dozens of iterations to achieve the best cooling performance possible. It includes a direct-solder copper core board, thermal phase-change interface material, and thermally-modeled zinc casting get heat to the base, where base fins are designed for aerodynamic performance in conjunction with the flow rate and pressure of the Sunon bearingless microfan. The result is a highly-effective and reliable cooling system, keeping the bulb running at maximum potential.

Fitment. With its patented design, the SL1 LED fits where other bulbs won't, without cutting or modification. There's no hanging metal straps, just a compact bulb that plugs right in, with an exclusive reinforced shroud to keep the heat off any other components or wiring. Only slightly larger than a standard halogen bulb, it fits behind dust caps and in tight spaces. The driver and bulb are tested to function when sealed inside the headlamp - no worries about heat buildup! The base sizes on the bulb are also are keyed for exact applications, not one-size-fits-all, and the compact driver easily tucks away.

Driven. Rather than a simple buck regulator found on other bulbs, the SL1 uses a unique boost-mode circuit, which prevents thermal imbalance in the LEDs over time - again, just like you would find in OEM LEDs. It also has transient protection for long life in automotive circuits. Diode Dynamics engineers also analyzed dozens of OEM electrical systems, and added current-monitoring circuitry to mimic the electrical characteristic of halogen bulbs, drastically reducing the need for CAN-BUS adapters (though they're still needed on some applications).

Reliability. Every part of the SL1 LED was designed for reliability, from the custom wiring with strain reliefs and solderless terminals, to the exclusive zinc castings, to the reinforced high-temperature PP-GF plastics (the same used in halogen bulb bases). Each component was designed and tested, with dozens of variations of each component reviewed until we achieved the maximum performance possible. Finally, the SL1 was put through its paces in our environmental testing chambers - where the bulb successfully performed through dozens of thermal cycles, from -40 through 85 degrees Celsius (-40 to 185F). Whether you're in the Sahara or northern Canada, the SL1 will keep performing for years, and is backed by a three year warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.

Brand: Diode Dynamics

  • 1996-2005 Honda Civic
  • 2000-2002 BMW Z3
  • 2000-2005 Buick LeSabre
  • 2000-2005 Buick Park Avenue
  • 2000-2004 Buick Regal
  • 2000-2005 Buick Century
  • 2000-2005 Cadillac DeVille
  • 2000-2004 Cadillac Seville
  • 2000-2006 Lincoln LS
  • 2000-2002 Cadillac Eldorado
  • 2002-2013 BMW X5
  • 2002-2007 Buick Rendezvous
  • 2002-2004 Acura RSX
  • 2002-2006 BMW 330i
  • 2002-2006 BMW 325i
  • 2003-2006 Chevrolet SSR
  • 2003-2009 Lexus GX470
  • 2003-2016 Mitsubishi Lancer
  • 2003-2008 BMW Z4
  • 2003-2008 Mini Cooper
  • 2003-2005 Lincoln Aviator
  • 2003-2005 Pontiac Sunfire
  • 2003-2014 Lincoln Navigator
  • 2004-2009 Nissan Quest
  • 2004-2005 Acura EL
  • 2004-2010 BMW X3
  • 2004-2006 Mazda MPV
  • 2004-2008 Toyota Solara
  • 2004-2006 Lexus RX330
  • 2004-2010 Volkswagen Touareg
  • 2004-2006 Volkswagen Phaeton
  • 2004-2006 Pontiac GTO
  • 2004-2008 Mazda RX-8
  • 2004-2019 Nissan Sentra
  • 2004-2007 Buick Rainier
  • 2004-2014 Acura TSX
  • 2004-2013 Acura MDX
  • 2004-2016 Chevrolet Malibu
  • 2004-2006 Mazda 3
  • 2005-2015 Nissan Xterra
  • 2005-2019 Nissan Frontier
  • 2005-2019 Nissan Pathfinder
  • 2005-2011 Cadillac STS
  • 2005-2010 Buick Allure
  • 2005-2018 Honda Odyssey
  • 2005-2014 Ford Mustang
  • 2005-2007 Ford Freestyle
  • 2005-2008 Pontiac Grand Prix
  • 2005-2010 Pontiac G6
  • 2005-2010 Chevrolet Cobalt
  • 2005-2006 Pontiac Montana
  • 2005-2013 Buick LaCrosse
  • 2005-2018 Ford Focus
  • 2005-2018 Chevrolet Equinox
  • 2005-2007 Ford Escape
  • 2005-2006 Lexus ES330
  • 2005-2007 Buick Terraza
  • 2005-2008 Acura RL
  • 2006-2010 Volkswagen Beetle
  • 2006-2011 Mitsubishi Endeavor
  • 2006-2006 Lincoln Zephyr
  • 2006-2017 Honda Pilot
  • 2006-2017 Mazda 6
  • 2006-2010 Mazda 5
  • 2006-2014 Lexus IS250
  • 2006-2019 Toyota RAV4
  • 2006-2019 Toyota 4Runner
  • 2006-2019 Ford Fusion
  • 2006-2011 Buick Lucerne
  • 2006-2011 Acura CSX
  • 2006-2011 BMW 323i
  • 2006-2007 Chevrolet Monte Carlo
  • 2006-2015 Mazda MX-5 Miata
  • 2006-2009 Pontiac Torrent
  • 2006-2008 Mitsubishi Eclipse
  • 2006-2008 Lexus RX400h
  • 2006-2016 Chevrolet Impala
  • 2006-2014 Honda Ridgeline
  • 2006-2010 Infiniti M45
  • 2006-2010 Infiniti M35
  • 2007-2014 Chevrolet Suburban 1500
  • 2007-2015 Lincoln MKX
  • 2007-2019 Honda CR-V
  • 2007-2016 Mazda CX-9
  • 2007-2019 Toyota Tundra
  • 2007-2019 Toyota Camry
  • 2007-2018 Nissan Maxima
  • 2007-2009 Hyundai Entourage
  • 2007-2012 Mazda CX-7
  • 2007-2010 Ford Edge
  • 2007-2013 GMC Sierra 1500
  • 2007-2016 Lexus RX350
  • 2007-2018 Acura RDX
  • 2007-2009 Pontiac G5
  • 2007-2012 Lincoln MKZ
  • 2007-2008 Hyundai Tiburon
  • 2007-2007 BMW 335i
  • 2007-2014 Honda Fit Sport
  • 2007-2019 GMC Acadia
  • 2007-2017 Hyundai Elantra
  • 2007-2018 Mitsubishi Outlander
  • 2007-2009 Kia Amanti
  • 2008-2019 Subaru Impreza
  • 2008-2019 Nissan Rogue
  • 2008-2009 Pontiac G8
  • 2008-2011 Lexus LX570
  • 2008-2019 Toyota Sequoia
  • 2008-2012 BMW X6
  • 2008-2013 Lexus IS F
  • 2008-2015 Cadillac CTS
  • 2008-2015 Toyota Avalon
  • 2008-2012 Infiniti EX35
  • 2008-2013 Scion tC
  • 2008-2019 Toyota Highlander
  • 2008-2011 Toyota Land Cruiser
  • 2008-2014 Scion xB
  • 2008-2012 Buick Enclave
  • 2008-2015 Smart Fortwo
  • 2008-2009 Ford Taurus
  • 2009-2016 Lincoln MKS
  • 2009-2018 Fiat 500
  • 2009-2018 Nissan Murano
  • 2009-2018 Subaru Forester
  • 2009-2013 Toyota Matrix
  • 2009-2016 Toyota Corolla
  • 2009-2012 Volkswagen CC
  • 2009-2014 Volkswagen Routan
  • 2009-2014 Acura TL
  • 2009-2013 BMW M3
  • 2009-2018 Chevrolet Traverse
  • 2009-2009 Cadillac XLR
  • 2009-2016 Toyota Venza
  • 2009-2018 Ford Flex
  • 2010-2016 Toyota Prius
  • 2010-2013 Lexus GX460
  • 2010-2013 Acura ZDX
  • 2010-2019 Subaru Outback
  • 2010-2019 Subaru Legacy
  • 2010-2018 Mazda 3
  • 2010-2016 Cadillac SRX
  • 2010-2019 Lincoln MKT
  • 2010-2012 Lexus HS250h
  • 2010-2014 Honda Insight
  • 2010-2019 GMC Terrain
  • 2010-2019 Ford Transit Connect
  • 2010-2016 Lexus RX450h
  • 2011-2016 Honda CR-Z
  • 2011-2019 Dodge Durango
  • 2011-2014 Dodge Charger
  • 2011-2017 Lexus CT200h
  • 2011-2017 Nissan Leaf
  • 2011-2017 Chrysler 200
  • 2011-2019 Dodge Grand Caravan
  • 2011-2017 Toyota Sienna
  • 2011-2013 Kia Sorento
  • 2011-2015 Ford Explorer
  • 2011-2015 Nissan Armada
  • 2011-2013 Infiniti G37
  • 2011-2015 Lexus ES350
  • 2011-2016 Mazda 2
  • 2011-2019 Ford Fiesta
  • 2011-2017 Nissan Quest
  • 2011-2013 Buick Regal
  • 2011-2014 Chrysler 300
  • 2012-2019 Chevrolet Sonic
  • 2012-2019 Jeep Grand Cherokee
  • 2012-2019 Nissan Versa
  • 2012-2015 Toyota Prius C
  • 2012-2018 Toyota Prius V
  • 2012-2015 Honda Crosstour
  • 2012-2019 Toyota Tacoma
  • 2012-2015 Scion iQ
  • 2012-2012 Mitsubishi i-MiEV
  • 2012-2017 Buick Verano
  • 2012-2015 Chevrolet Captiva Sport
  • 2012-2019 Honda Civic
  • 2012-2017 Mazda 5
  • 2012-2016 BMW M5
  • 2013-2016 Toyota Land Cruiser
  • 2013-2016 Dodge Dart
  • 2013-2019 Buick Encore
  • 2013-2017 Hyundai Azera
  • 2013-2017 Honda Accord
  • 2013-2015 Lexus ES300h
  • 2013-2015 Subaru XV Crosstrek
  • 2013-2017 Chevrolet Caprice
  • 2013-2015 Hyundai Sonata
  • 2013-2019 Ford Escape
  • 2013-2019 Acura ILX
  • 2013-2018 Ford C-Max
  • 2013-2019 Mazda CX-5
  • 2013-2015 Lexus LX570
  • 2013-2015 Chevrolet Spark
  • 2013-2016 Scion FR-S
  • 2013-2013 Lexus GS350
  • 2014-2014 Mitsubishi i-MiEV
  • 2014-2015 Infiniti Q60
  • 2014-2019 Jeep Compass
  • 2014-2018 Chevrolet Camaro
  • 2014-2019 Jeep Cherokee
  • 2014-2018 BMW i3
  • 2015-2019 GMC Yukon
  • 2015-2019 Ford Edge
  • 2015-2019 Chevrolet Suburban
  • 2015-2017 Jeep Renegade
  • 2015-2017 Ford Expedition
  • 2015-2018 Chevrolet Tahoe
  • 2015-2016 Volkswagen Golf
  • 2015-2017 Nissan Juke
  • 2015-2019 Dodge Challenger
  • 2015-2019 Ford F-150
  • 2015-2019 Chevrolet Colorado
  • 2015-2017 Subaru WRX STI
  • 2015-2016 Volkswagen Touareg
  • 2015-2019 GMC Canyon
  • 2015-2019 Subaru WRX
  • 2016-2019 Subaru Crosstrek Premium
  • 2016-2017 Mitsubishi i-MiEV
  • 2016-2019 Buick Cascada
  • 2016-2019 Subaru Crosstrek
  • 2016-2019 Buick Envision
  • 2016-2019 Ford Transit
  • 2016-2017 Ford Mustang
  • 2016-2016 Toyota Yaris
  • 2017-2018 Buick LaCrosse
  • 2017-2019 Nissan Altima
  • 2017-2018 Chevrolet Trax
  • 2017-2019 Chrysler Pacifica
  • 2017-2018 Chevrolet Cruze
  • 2017-2019 Fiat 124 Spider
  • 2017-2018 Nissan Titan
  • 2017-2019 Honda Ridgeline
  • 2018-2019 Ford EcoSport
  • 2019-2019 Ford Ranger
  • 2019-2019 Ram 2500 Lone Star
  • 2019-2019 Ram 1500 Tradesman
  • 2019-2019 Ram 1500
  • 2019-2019 Ram 1500 Rebel
  • 2019-2019 Subaru Ascent
  • 2019-2019 Ram 2500 Power Wagon
  • 2019-2019 Ram 1500 Lone Star
  • 2019-2019 Ram 1500 Limited
  • 2019-2019 Ram 1500 Big Horn
  • 2019-2019 Ram 2500 Limited
  • 2019-2019 Ram 1500 Laramie Longhorn
  • 2019-2019 Ram 2500 Laramie Longhorn
  • 2019-2019 Ram 1500 Laramie
  • 2019-2019 Ram 2500 Laramie
  • 2019-2019 Ram 2500 Big Horn
  • 2019-2019 Ram 2500 Tradesman
