Diode Dynamics H10 SLF LED Cool White Pair Universal DD0285P | Auto Parts Toys

Features

  • H10 SLF LED Cool White Pair
  • Direct replacement for factory incandescent bulb
  • Correct optical focus for Street Legal Output
  • Plug and play, simple installation
  • Engineered and manufactured in the USA
  • Available in 6000K cool white and yellow

What's Included

  • Quantity: Two (2)
  • Warranty: 3 year warranty
  • 100 percent Satisfaction Guarantee

Fitment

  • Replacement for any H10 bulb size, including 9005, HB3, 9005LL, 9011, 9040, H10, HIR1, 9145, PY20
  • Plug and play, no modification needed
  • Bulb Size: H10

Specifications

  • Measured Lumens: 780 (per bulb)
  • Color Temp (CCT): 3000K, 6000K
  • Power (watts): 8.15
  • Operating Voltage: 5-16V
  • Current (amps at 13.2V): .635
  • Polarity: Nonpolar
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: OEM-Grade Headlamp SMD
  • Connector(s): OEM-Size Plug and Play
  • Driver Features: External, Waterproof, Constant Current
  • Driver Dimensions: 2.19 Inch x 1.13 Inch x 0.56 Inch
  • Materials: Aluminum PCB, Zinc Heatsink
  • Cooling: Passive, heatsink
  • Compliance Ratings: FMVSS108 Beam Pattern, SAE J575 Durability Test

Upgrade. If you're looking to replace your factory yellowish incandescent bulbs and improve your visibility at night, you've probably found many options for LED upgrades. Most bulbs on the market are too big to install, don't work with the electrical system, and have no focus or hotspot in the beam pattern. Even if they come close on those aspects, they still aren't anything close to the quality you would find with factory-installed lighting. Like most aftermarket products, most LED bulbs are not engineered and tested for long-term reliability.

With the SLF LED, Diode Dynamics set out to engineer a true OEM-grade solution. With its compact size, optically correct output and boost-mode electrical circuit, the SLF LED is a properly-engineered solution that finally provides a true upgrade in performance, with high reliability: and it's tested and validated to meet those standards, just like OEM lighting.

Street Legal Output. Don't be fooled by high lumen numbers. Your vehicle's fog lights are designed to focus light. If the light source in the housing is out of focus, it doesn't matter how bright it is. You won't have a focused hotspot of light to shine down the road, you'll just have more glare. To correct this, the SLF LED bulb was engineered with advanced optical design software, which simulates each ray of light in a process known as ray tracing. Using this tool, our engineers perfectly matched the filament location, allowing the SLF LED to focus light just like your original bulb, preserving the focus and hotspot, with no added glare. It produces a functional pattern on the road, with a stronger hotspot for added distance. This is a safe, functional output, in compliance with photometric standards, which we call Street Legal.

Reliability. Every part of the the SLF LED was designed for reliability, from the custom wiring with strain reliefs and solderless terminals to the exclusive zinc castings. Each component was designed and tested, with dozens of variations of each component reviewed until we achieved the maximum performance possible. Finally, the SLF was put through its paces in our environmental testing chambers - where the bulb successfully performed through dozens of thermal cycles, from -40 through 85 degrees Celsius (-40 to 185F). Whether you're in the Sahara or northern Canada, the SLF will keep performing for years, and is backed by a three year warranty.

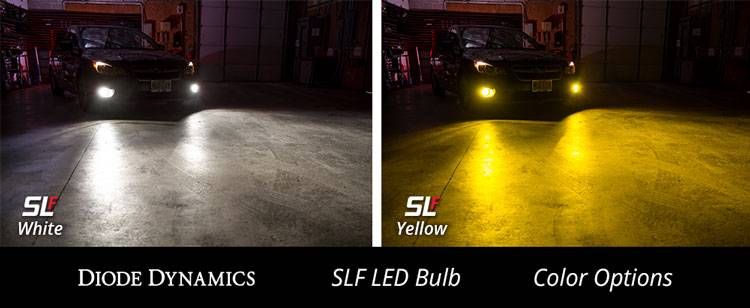

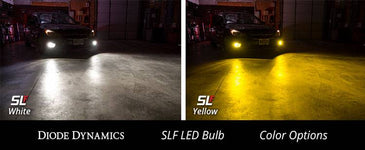

Pure Yellow. Most white LEDs on the market are actually a blue LED chip with a yellow phosphor coating. Blue and yellow combine, and you see white light. However, many white LEDs actually illuminate in a cool white color with a hint of blue. To create yellow LEDs, many manufacturers will put yellow lenses on the outside of a bulb. Whenever any hint of blue shines through a yellow lens, the yellow and blue combine, producing more of a green color-not a good look! The Diode Dynamics SLF Yellow uses dual three-chip automotive grade high-power yellow LEDs for a true yellow output-no lens needed!

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.

Brand: Diode Dynamics

  • 1999-2010 Jeep Grand Cherokee
  • 1999-2014 Ford F-150
  • 2000-2005 Ford Excursion
  • 2000-2002 Lincoln LS
  • 2000-2000 Chrysler Cirrus
  • 2000-2004 Chrysler Concorde
  • 2000-2001 Chrysler LHS
  • 2000-2014 Ford Expedition
  • 2001-2003 Chrysler Voyager
  • 2001-2007 Dodge Caravan
  • 2001-2009 Dodge Grand Caravan EcoBoost
  • 2001-2010 Ford Explorer EcoBoost Premium
  • 2001-2011 Ford Ranger GT
  • 2001-2002 Chrysler Neon GT 50 Years Limited Edition
  • 2002-2004 Ford Focus GT Premium
  • 2002-2013 Jeep Liberty Shelby GT350
  • 2002-2005 Ford Crown Victoria Shelby GT350R
  • 2002-2004 Ford Mustang V6
  • 2003-2011 Lincoln Town Car
  • 2003-2006 GMC Sierra 1500
  • 2003-2004 GMC Sierra 2500
  • 2003-2006 GMC Sierra 3500
  • 2003-2007 Cadillac CTS
  • 2003-2006 Dodge Viper
  • 2003-2006 Lincoln Navigator
  • 2003-2005 Lincoln Aviator
  • 2003-2005 Dodge SX 2.0
  • 2004-2006 Toyota Solara
  • 2004-2012 Chevrolet Colorado
  • 2004-2008 Cadillac XLR
  • 2004-2016 Cadillac SRX
  • 2004-2012 GMC Canyon
  • 2004-2006 Pontiac GTO
  • 2005-2011 Toyota Tacoma
  • 2005-2007 Ford Five Hundred
  • 2005-2006 Ford Escape
  • 2005-2013 Chevrolet Corvette
  • 2005-2009 Chrysler 300
  • 2005-2008 Dodge Magnum
  • 2005-2009 Dodge Dakota
  • 2006-2009 Dodge Charger
  • 2006-2010 Hummer H3
  • 2006-2008 Lincoln Mark LT
  • 2006-2011 Chevrolet HHR
  • 2006-2011 Cadillac DTS
  • 2006-2010 Chrysler PT Cruiser
  • 2006-2010 Jeep Commander
  • 2006-2009 Mitsubishi Raider
  • 2007-2009 Jeep Patriot
  • 2007-2013 Toyota Tundra
  • 2007-2011 Dodge Nitro
  • 2007-2012 Mitsubishi Galant
  • 2007-2009 Dodge Durango
  • 2007-2009 Jeep Wrangler
  • 2007-2009 Chrysler Aspen
  • 2007-2009 Jeep Compass
  • 2007-2014 Cadillac Escalade
  • 2007-2009 Dodge Caliber
  • 2008-2010 Dodge Challenger
  • 2008-2013 GMC Yukon
  • 2008-2010 Pontiac G6
  • 2008-2011 Mazda Tribute
  • 2008-2019 Toyota Sequoia
  • 2008-2009 Dodge Avenger
  • 2008-2010 Dodge Viper
  • 2009-2010 Hummer H3T
  • 2009-2009 Dodge Journey
  • 2009-2012 Mitsubishi Eclipse
  • 2009-2010 Pontiac Vibe
  • 2010-2012 Ford Mustang
  • 2011-2019 Ram 1500
  • 2011-2017 Buick Regal
  • 2013-2015 Chevrolet Malibu
  • 2013-2016 Ford Escape
  • 2014-2015 Chevrolet SS
  • 2018-2019 Ford F-150
  • 2019-2019 Chevrolet Colorado
