Diode Dynamics H10 SL1 LED Headlight Pair Universal DD0216P | AutoPartsToys

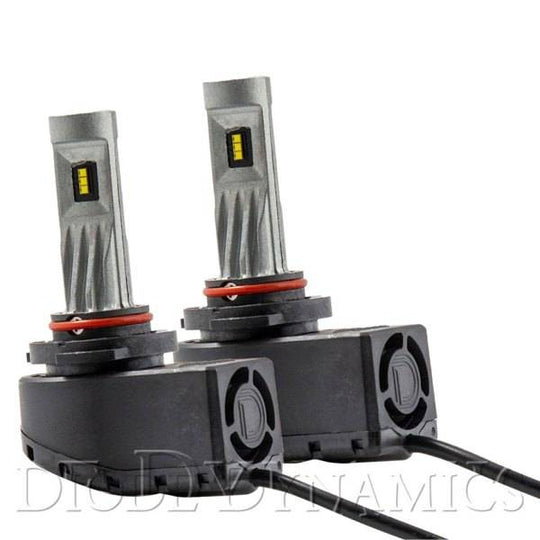

  • H10 SL1 LED Headlight Pair
  • Low or high beam LED headlight replacement
  • Correct optical focus for increased output with no added glare
  • Perfect H10 fitment, no modification needed
  • Designed and validated to OEM lighting standards
  • Engineered and Manufactured in USA

What's Included

  • Quantity: Single or Pair
  • Warranty: 3 year warranty
  • 100 percent Satisfaction Guarantee


  • Bulb Size: H10
  • DRL Function: Operates at full brightness for DRL


  • Measured Lumens: 1630 (per bulb)
  • Color Temp (CCT): 6000K
  • Power (watts): 20.2
  • Operating Voltage: 5-16V
  • Current (amps at 13.2V): 1.58
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Luxeon Z ES
  • Connector(s): OEM-Size Plug and Play
  • Driver Features: External, Waterproof, Constant Current
  • Driver Dimensions: 2.19 Inch x 1.13 Inch x 0.56 Inch
  • Materials: Copper PCB, PP-TD30 Base, Zinc Heatsink
  • Cooling: Active, Mag-Lev Microfan
  • Compliance Ratings: FMVSS108 Beam Pattern, SAE J575 Durability Test
  • Patent: US D824052

Aftermarket or OEM? If you're looking to improve visibility on your vehicle at night, you've probably found many options for LED upgrades. Most bulbs on the market are too big to install, don't work with the electrical system, and have no focus or hotspot in the beam pattern. Even if they come close on those aspects, they still aren't anything close to the quality you would find with factory-installed lighting. Like most aftermarket products, most LED bulbs are not engineered and tested for long-term reliability.

With the SL1 LED, Diode Dynamics set out to engineer a true OEM-grade solution. With its compact size, optically correct output, flow-simulated cooling, and boost-mode electrical circuit, our SL1 LED patented design is a properly-engineered solution that finally provides a true upgrade in performance, with high reliability: and it's tested and validated to meet those standards, just like OEM lighting.

Compact Size. Your order includes two bulbs, to replace the factory bulbs in your vehicle. The bulbs are compact in size, in a patented design that isn't much bigger than the original halogen bulb. The drivers are compact too! If you have a sealed headlamp, they are designed to fit inside. The drivers and bulbs are tested to last over time, even when sealed inside with the heat of the headlamp. Please note that if you are replacing a high beam / DRL bulb, the DRL function may no longer work, depending on your vehicle. Please see further information on Vehicle-Specific product listings, or contact us.

Street Legal Output. Don't be fooled by high lumen numbers or projector specific bulbs. Your vehicle's headlights are designed as a system, to focus light. If the light source in that system is out of focus, it doesn't matter how bright it is. You won't have a focused hotspot of light to shine down the road, you'll just have more glare. To correct this, the SL1 LED headlight bulb was engineered with advanced optical design software, which simulates each ray of light in a process known as ray tracing. Using this tool, our engineers perfectly matched the filament location, allowing the SL1 LED to focus light just like your original bulb, preserving the focus and hotspot, with no added glare. It produces a functional pattern on the road, with a stronger hotspot for added distance. This is a safe, functional output, in compliance with photometric standards, which we call Street Legal.

Daytime Running Light. Daytime Running Lights (DRLs) are lights that illuminate when the vehicle is running, and when all other lights are turned off. Some vehicles use the high beam bulb as the daytime running light. If your vehicle uses voltage drop for the DRL signal, the SL1 will operate at full brightness. If your vehicle uses PWM for the DRL signal, the SL1 will operate at a reduced brightness level just like your factory halogen bulb would.

Tested to Perform. We test the SL1 bulb in factory headlamps, and measure the entire beam pattern using specialized equipment. It's an elaborate affair: a headlight is mounted to a computer-controlled rotating head called a goniometer. Light shines down a tunnel, where a sensor collects data as the headlight is rotated. The entire beam pattern is mapped, and we compare the total output to the original halogen, confirming that the SL1 bulb shines more light in the hotspot, without adding extra glare on the road. The test results speak for themselves: in most lamps, like the 2015 F-150 Halogen lamp, there is 30-70 percent more light in the critical hotspot, with no added glare or spread of light. With proper optical engineering, testing, and validation in the application, we can assure correct optical performance.

Staying Cool. You may have seen bulbs that use large straps for cooling, or big fans that just make noise. These bulbs still run hot, pushing the LEDs past their limits, resulting in degradation of output after a few months. When it comes to cooling, proper engineering is required to efficiently remove heat from the bulb. In the SL1, it comes together as a whole system that was extensively tested, with dozens of iterations to achieve the best cooling performance possible. It includes a direct-solder copper core board, thermal phase-change interface material, and thermally-modeled zinc casting get heat to the base, where base fins are designed for aerodynamic performance in conjunction with the flow rate and pressure of the Sunon bearingless microfan. The result is a highly-effective and reliable cooling system, keeping the bulb running at maximum potential.

Fitment. With its patented design, the SL1 LED fits where other bulbs won't, without cutting or modification. There's no hanging metal straps, just a compact bulb that plugs right in, with an exclusive reinforced shroud to keep the heat off any other components or wiring. Only slightly larger than a standard halogen bulb, it fits behind dust caps and in tight spaces. The driver and bulb are tested to function when sealed inside the headlamp - no worries about heat buildup! The base sizes on the bulb are also are keyed for exact applications, not one-size-fits-all, and the compact driver easily tucks away.

Driven. Rather than a simple buck regulator found on other bulbs, the SL1 uses a unique boost-mode circuit, which prevents thermal imbalance in the LEDs over time - again, just like you would find in OEM LEDs. It also has transient protection for long life in automotive circuits. Diode Dynamics engineers also analyzed dozens of OEM electrical systems, and added current-monitoring circuitry to mimic the electrical characteristic of halogen bulbs, drastically reducing the need for CAN-BUS adapters (though they're still needed on some applications).

Reliability. Every part of the SL1 LED was designed for reliability, from the custom wiring with strain reliefs and solderless terminals, to the exclusive zinc castings, to the reinforced high-temperature PP-GF plastics (the same used in halogen bulb bases). Each component was designed and tested, with dozens of variations of each component reviewed until we achieved the maximum performance possible. Finally, the SL1 was put through its paces in our environmental testing chambers - where the bulb successfully performed through dozens of thermal cycles, from -40 through 85 degrees Celsius (-40 to 185F). Whether you're in the Sahara or northern Canada, the SL1 will keep performing for years, and is backed by a three year warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.

Brand: Diode Dynamics

  • 1999-2010 Jeep Grand Cherokee
  • 2000-2002 Lincoln LS
  • 2000-2005 Ford Excursion
  • 2000-2000 Chrysler Cirrus
  • 2000-2014 Ford Expedition
  • 2000-2004 Chrysler Concorde
  • 2000-2001 Chrysler LHS
  • 2001-2010 Ford Explorer
  • 2001-2011 Ford Ranger
  • 2001-2002 Chrysler Neon
  • 2001-2003 Chrysler Voyager
  • 2001-2007 Dodge Caravan
  • 2001-2009 Dodge Grand Caravan
  • 2002-2005 Ford Crown Victoria
  • 2002-2013 Jeep Liberty
  • 2002-2004 Ford Focus
  • 2003-2006 GMC Sierra 3500
  • 2003-2005 Dodge SX 2.0
  • 2003-2006 Dodge Viper
  • 2003-2007 Cadillac CTS
  • 2003-2006 GMC Sierra 1500
  • 2003-2004 GMC Sierra 2500
  • 2003-2011 Lincoln Town Car
  • 2003-2005 Lincoln Aviator
  • 2003-2006 Lincoln Navigator
  • 2004-2008 Cadillac XLR
  • 2004-2012 Chevrolet Colorado
  • 2004-2016 Cadillac SRX
  • 2004-2012 GMC Canyon
  • 2004-2006 Pontiac GTO
  • 2004-2006 Toyota Solara
  • 2005-2009 Chrysler 300
  • 2005-2011 Toyota Tacoma
  • 2005-2009 Ford Mustang
  • 2005-2007 Ford Five Hundred
  • 2005-2013 Chevrolet Corvette
  • 2005-2009 Dodge Dakota
  • 2005-2006 Ford Escape
  • 2005-2008 Dodge Magnum
  • 2006-2009 Dodge Charger
  • 2006-2010 Hummer H3
  • 2006-2008 Lincoln Mark LT
  • 2006-2011 Chevrolet HHR
  • 2006-2011 Cadillac DTS
  • 2006-2010 Chrysler PT Cruiser
  • 2006-2010 Jeep Commander
  • 2006-2009 Mitsubishi Raider
  • 2007-2009 Jeep Wrangler
  • 2007-2013 Toyota Tundra
  • 2007-2011 Dodge Nitro
  • 2007-2012 Mitsubishi Galant
  • 2007-2009 Chrysler Aspen
  • 2007-2009 Dodge Durango
  • 2007-2009 Jeep Patriot
  • 2007-2009 Dodge Caliber
  • 2007-2014 Cadillac Escalade
  • 2007-2009 Jeep Compass
  • 2008-2010 Pontiac G6
  • 2008-2013 GMC Yukon Hybrid
  • 2008-2008 Nissan Maxima
  • 2008-2019 Toyota Sequoia
  • 2008-2011 Mazda Tribute
  • 2008-2010 Dodge Challenger
  • 2008-2009 Dodge Avenger
  • 2008-2010 Dodge Viper
  • 2009-2012 Mitsubishi Eclipse
  • 2009-2009 Dodge Journey
  • 2009-2010 Hummer H3T
  • 2009-2010 Pontiac Vibe
  • 2011-2019 Ram 1500
  • 2011-2017 Buick Regal
  • 2013-2016 Ford Escape
  • 2013-2015 Chevrolet Malibu
  • 2014-2015 Chevrolet SS
  • 2019-2019 Chevrolet Colorado ZR2
