Diode Dynamics 9005 SL1 LED Headlight Pair Universal DD0218P | Auto Parts Toys

Features

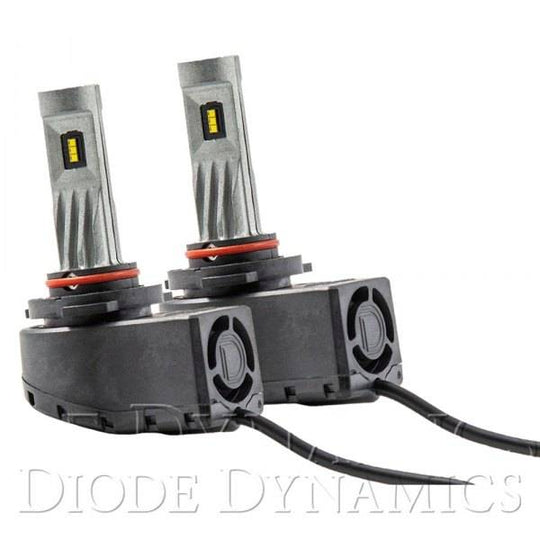

  • 9005 SL1 LED Headlight Pair
  • Low or high beam LED headlight replacement
  • Correct optical focus for increased output with no added glare
  • Perfect 9005 fitment, no modification needed
  • Designed and validated to OEM lighting standards
  • Engineered and Manufactured in USA

What's Included

  • Quantity: Single or Pair
  • Warranty: 3 year warranty
  • 100 percent Satisfaction Guarantee

Fitment

  • Bulb Size: 9005
  • DRL Function: Operates at full brightness for DRL

Specifications

  • Measured Lumens: 1630 (per bulb)
  • Color Temp (CCT): 6000K
  • Power (watts): 20.2
  • Operating Voltage: 5-16V
  • Current (amps at 13.2V): 1.58
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Luxeon Z ES
  • Connector(s): OEM-Size Plug and Play
  • Driver Features: External, Waterproof, Constant Current
  • Driver Dimensions: 2.19 Inch x 1.13 Inch x 0.56 Inch
  • Materials: Copper PCB, PP-TD30 Base, Zinc Heatsink
  • Cooling: Active, Mag-Lev Microfan
  • Compliance Ratings: FMVSS108 Beam Pattern, SAE J575 Durability Test
  • Patent: US D824052

Aftermarket or OEM? If you're looking to improve visibility on your vehicle at night, you've probably found many options for LED upgrades. Most bulbs on the market are too big to install, don't work with the electrical system, and have no focus or hotspot in the beam pattern. Even if they come close on those aspects, they still aren't anything close to the quality you would find with factory-installed lighting. Like most aftermarket products, most LED bulbs are not engineered and tested for long-term reliability.

With the SL1 LED, Diode Dynamics set out to engineer a true OEM-grade solution. With its compact size, optically correct output, flow-simulated cooling, and boost-mode electrical circuit, our SL1 LED patented design is a properly-engineered solution that finally provides a true upgrade in performance, with high reliability: and it's tested and validated to meet those standards, just like OEM lighting.

Compact Size. Your order includes two bulbs, to replace the factory bulbs in your vehicle. The bulbs are compact in size, in a patented design that isn't much bigger than the original halogen bulb. The drivers are compact too! If you have a sealed headlamp, they are designed to fit inside. The drivers and bulbs are tested to last over time, even when sealed inside with the heat of the headlamp. Please note that if you are replacing a high beam / DRL bulb, the DRL function may no longer work, depending on your vehicle. Please see further information on Vehicle-Specific product listings, or contact us.

Street Legal Output. Don't be fooled by high lumen numbers or projector specific bulbs. Your vehicle's headlights are designed as a system, to focus light. If the light source in that system is out of focus, it doesn't matter how bright it is. You won't have a focused hotspot of light to shine down the road, you'll just have more glare. To correct this, the SL1 LED headlight bulb was engineered with advanced optical design software, which simulates each ray of light in a process known as ray tracing. Using this tool, our engineers perfectly matched the filament location, allowing the SL1 LED to focus light just like your original bulb, preserving the focus and hotspot, with no added glare. It produces a functional pattern on the road, with a stronger hotspot for added distance. This is a safe, functional output, in compliance with photometric standards, which we call Street Legal.

Daytime Running Light. Daytime Running Lights (DRLs) are lights that illuminate when the vehicle is running, and when all other lights are turned off. Some vehicles use the high beam bulb as the daytime running light. If your vehicle uses voltage drop for the DRL signal, the SL1 will operate at full brightness. If your vehicle uses PWM for the DRL signal, the SL1 will operate at a reduced brightness level just like your factory halogen bulb would.

Tested to Perform. We test the SL1 bulb in factory headlamps, and measure the entire beam pattern using specialized equipment. It's an elaborate affair: a headlight is mounted to a computer-controlled rotating head called a goniometer. Light shines down a tunnel, where a sensor collects data as the headlight is rotated. The entire beam pattern is mapped, and we compare the total output to the original halogen, confirming that the SL1 bulb shines more light in the hotspot, without adding extra glare on the road. The test results speak for themselves: in most lamps, like the 2015 F-150 Halogen lamp, there is 30-70 percent more light in the critical hotspot, with no added glare or spread of light. With proper optical engineering, testing, and validation in the application, we can assure correct optical performance.

Staying Cool. You may have seen bulbs that use large straps for cooling, or big fans that just make noise. These bulbs still run hot, pushing the LEDs past their limits, resulting in degradation of output after a few months. When it comes to cooling, proper engineering is required to efficiently remove heat from the bulb. In the SL1, it comes together as a whole system that was extensively tested, with dozens of iterations to achieve the best cooling performance possible. It includes a direct-solder copper core board, thermal phase-change interface material, and thermally-modeled zinc casting get heat to the base, where base fins are designed for aerodynamic performance in conjunction with the flow rate and pressure of the Sunon bearingless microfan. The result is a highly-effective and reliable cooling system, keeping the bulb running at maximum potential.

Fitment. With its patented design, the SL1 LED fits where other bulbs won't, without cutting or modification. There's no hanging metal straps, just a compact bulb that plugs right in, with an exclusive reinforced shroud to keep the heat off any other components or wiring. Only slightly larger than a standard halogen bulb, it fits behind dust caps and in tight spaces. The driver and bulb are tested to function when sealed inside the headlamp - no worries about heat buildup! The base sizes on the bulb are also are keyed for exact applications, not one-size-fits-all, and the compact driver easily tucks away.

Driven. Rather than a simple buck regulator found on other bulbs, the SL1 uses a unique boost-mode circuit, which prevents thermal imbalance in the LEDs over time - again, just like you would find in OEM LEDs. It also has transient protection for long life in automotive circuits. Diode Dynamics engineers also analyzed dozens of OEM electrical systems, and added current-monitoring circuitry to mimic the electrical characteristic of halogen bulbs, drastically reducing the need for CAN-BUS adapters (though they're still needed on some applications).

Reliability. Every part of the SL1 LED was designed for reliability, from the custom wiring with strain reliefs and solderless terminals, to the exclusive zinc castings, to the reinforced high-temperature PP-GF plastics (the same used in halogen bulb bases). Each component was designed and tested, with dozens of variations of each component reviewed until we achieved the maximum performance possible. Finally, the SL1 was put through its paces in our environmental testing chambers - where the bulb successfully performed through dozens of thermal cycles, from -40 through 85 degrees Celsius (-40 to 185F). Whether you're in the Sahara or northern Canada, the SL1 will keep performing for years, and is backed by a three year warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.

Brand: Diode Dynamics

  • 1990-1996 Nissan 300ZX
  • 1991-2005 Acura NSX
  • 1992-2006 GMC Yukon
  • 1992-2006 Dodge Viper
  • 1992-1996 Honda Prelude
  • 1992-2000 Lexus SC300
  • 1993-2002 Pontiac Firebird
  • 1994-2001 Acura Integra
  • 1994-2004 GMC Sonoma
  • 1994-2012 Honda Accord
  • 1994-1999 Mitsubishi 3000GT
  • 1994-1998 Toyota Supra
  • 1995-2005 GMC Safari
  • 1995-2000 Ford Contour
  • 1995-1999 Chevrolet Cavalier
  • 1995-2005 GMC Jimmy
  • 1995-1999 Mitsubishi Eclipse
  • 1995-2003 Mitsubishi Diamante
  • 1997-1999 Volkswagen Golf
  • 1997-2003 Lexus ES300
  • 1997-1998 Nissan 240SX
  • 1997-1999 Hyundai Tiburon
  • 1997-2004 Chevrolet Corvette
  • 1998-2005 Lexus GS300
  • 1998-2000 Toyota RAV4
  • 1998-2011 Toyota Land Cruiser
  • 1998-2002 Chevrolet Camaro
  • 1998-2004 Chrysler Concorde
  • 1998-2000 GMC C3500
  • 1999-1999 Chevrolet Silverado
  • 1999-2004 GMC Sierra 2500
  • 1999-2003 Lexus RX300
  • 1999-2003 Acura TL
  • 1999-2013 GMC Sierra 1500
  • 1999-2007 Lexus LX470
  • 2000-2005 Buick Century
  • 2000-2002 BMW Z3
  • 2000-2001 Chrysler LHS
  • 2000-2003 BMW Z8
  • 2000-2000 Chrysler Sebring
  • 2000-2000 Dodge Avenger
  • 2000-2004 Dodge Intrepid
  • 2000-2005 Buick LeSabre
  • 2000-2000 BMW 528i
  • 2000-2005 Buick Park Avenue
  • 2000-2004 Buick Regal
  • 2000-2005 Cadillac DeVille
  • 2000-2002 Cadillac Eldorado
  • 2000-2015 Subaru Outback
  • 2000-2001 Infiniti I30
  • 2000-2015 Toyota Camry
  • 2000-2004 BMW X5
  • 2000-2015 Subaru Legacy
  • 2000-2005 Toyota Celica
  • 2000-2014 Chevrolet Express 1500
  • 2000-2006 Chevrolet Tahoe
  • 2000-2014 Chevrolet Suburban 1500
  • 2000-2001 Chevrolet Lumina
  • 2000-2005 Chevrolet Monte Carlo
  • 2000-2000 Cadillac Escalade
  • 2000-2004 Chrysler Intrepid
  • 2000-2004 Cadillac Seville
  • 2000-2003 Chevrolet Malibu
  • 2000-2005 Pontiac Bonneville
  • 2000-2005 Chevrolet Impala
  • 2001-2006 GMC Sierra 3500
  • 2001-2013 Acura MDX
  • 2001-2002 Chrysler Prowler
  • 2001-2007 Toyota Highlander
  • 2001-2010 Chrysler PT Cruiser
  • 2001-2005 Pontiac Aztek
  • 2001-2005 Lexus IS300
  • 2001-2006 Lexus LS430
  • 2001-2003 Infiniti QX4
  • 2001-2003 Acura CL
  • 2001-2006 GMC Yukon
  • 2001-2016 Toyota Corolla
  • 2002-2005 Ford Explorer
  • 2002-2008 Toyota Solara
  • 2002-2010 Lexus SC430
  • 2002-2004 Infiniti I35
  • 2002-2003 Nissan Maxima
  • 2002-2003 Mazda Protege5
  • 2002-2009 Chevrolet Trailblazer Sport
  • 2002-2006 Chevrolet Avalanche 1500
  • 2002-2009 GMC Envoy
  • 2002-2007 Buick Rendezvous
  • 2002-2013 Cadillac Escalade
  • 2003-2009 Lexus GX470
  • 2003-2018 Toyota 4Runner
  • 2003-2006 Chevrolet SSR
  • 2003-2006 Ford Expedition
  • 2003-2011 Lincoln Town Car
  • 2003-2006 Lincoln Navigator
  • 2003-2005 Lincoln Aviator
  • 2003-2006 Subaru Baja
  • 2003-2007 Cadillac CTS
  • 2003-2005 Chrysler Sebring
  • 2003-2004 Infiniti M45
  • 2004-2006 Lexus ES330
  • 2004-2009 Nissan Quest
  • 2004-2019 Subaru Impreza
  • 2004-2017 Toyota Sienna
  • 2004-2005 Acura EL
  • 2004-2012 Chevrolet Colorado
  • 2004-2015 Nissan Titan
  • 2004-2012 GMC Canyon
  • 2004-2010 Infiniti QX56
  • 2004-2009 Mitsubishi Galant
  • 2004-2006 Lexus RX330
  • 2004-2006 Volkswagen Phaeton
  • 2004-2008 Pontiac Grand Prix
  • 2004-2016 Honda Civic
  • 2004-2018 Mazda 3
  • 2004-2016 Cadillac SRX
  • 2004-2007 Buick Rainier
  • 2005-2015 Nissan Armada
  • 2005-2006 Infiniti Q45
  • 2005-2018 Honda Odyssey
  • 2005-2007 Ford Five Hundred
  • 2005-2011 Cadillac STS
  • 2005-2012 Acura RL
  • 2005-2006 Acura RSX
  • 2005-2013 Scion tC
  • 2005-2010 Chrysler 300
  • 2005-2008 Dodge Magnum
  • 2005-2018 Mitsubishi Outlander
  • 2006-2011 Acura CSX
  • 2006-2011 Buick Lucerne
  • 2006-2013 Lexus IS250
  • 2006-2008 Lexus RX400h
  • 2006-2010 Infiniti M35
  • 2006-2010 Mazda 5
  • 2006-2014 Dodge Charger
  • 2006-2012 Toyota RAV4
  • 2006-2010 Infiniti M45
  • 2006-2018 Subaru Forester
  • 2007-2010 Ford Edge
  • 2007-2011 Lexus GS350
  • 2007-2016 Mazda CX-9
  • 2007-2012 GMC Acadia
  • 2007-2012 Mazda CX-7
  • 2007-2013 Toyota Tundra
  • 2007-2015 Lexus ES350
  • 2007-2016 Lexus RX350
  • 2007-2016 Acura RDX
  • 2007-2017 Honda Pilot
  • 2007-2012 Lexus LS460
  • 2008-2019 Toyota Sequoia
  • 2008-2014 Lexus IS F
  • 2008-2011 Lexus LX570
  • 2008-2013 Nissan Rogue
  • 2008-2009 Dodge Durango
  • 2008-2014 Subaru Tribeca
  • 2008-2014 Scion xB
  • 2008-2012 Ford Taurus
  • 2008-2017 Mitsubishi Lancer
  • 2008-2015 Nissan Maxima
  • 2008-2010 Dodge Challenger
  • 2008-2014 Dodge Avenger
  • 2009-2017 Mazda 6
  • 2009-2010 Pontiac Vibe
  • 2009-2016 Toyota Venza
  • 2009-2014 Acura TL
  • 2009-2014 Nissan Murano
  • 2009-2014 Acura TSX
  • 2009-2012 Chevrolet Traverse
  • 2009-2019 Dodge Journey
  • 2010-2018 Chevrolet Equinox
  • 2010-2018 GMC Terrain
  • 2010-2014 Honda Insight
  • 2010-2015 Toyota Prius
  • 2010-2012 Lexus HS250h
  • 2010-2013 Acura ZDX
  • 2010-2016 Lexus RX450h
  • 2010-2013 Lexus GX460
  • 2011-2016 Honda CR-Z
  • 2011-2013 Ford Fiesta
  • 2011-2017 Nissan Quest
  • 2011-2019 Ford Explorer
  • 2011-2019 Toyota Highlander
  • 2012-2017 Mazda 5
  • 2012-2015 Toyota Prius C
  • 2012-2019 Chevrolet Sonic
  • 2012-2015 Scion iQ
  • 2012-2012 Mitsubishi i-MiEV
  • 2012-2018 Toyota Prius V
  • 2012-2015 Honda Crosstour
  • 2013-2019 Buick Encore
  • 2013-2019 Mazda CX-5
  • 2013-2015 Lexus LX570
  • 2013-2015 Acura ILX
  • 2013-2015 Subaru XV Crosstrek
  • 2013-2015 Lexus ES300h
  • 2013-2016 Nissan Pathfinder
  • 2013-2018 Ford Police Interceptor Utility
  • 2013-2019 Ford Escape
  • 2013-2016 Scion FR-S
  • 2013-2013 Toyota Land Cruiser
  • 2014-2014 Mitsubishi i-MiEV
  • 2014-2018 Hyundai Elantra
  • 2015-2018 Chevrolet Tahoe
  • 2015-2016 Nissan Rogue Premium
  • 2015-2019 Ford Transit
  • 2015-2017 Hyundai Sonata
  • 2015-2019 Chevrolet Colorado
  • 2015-2019 Ford F-150
  • 2015-2017 Subaru WRX STI
  • 2015-2019 Subaru WRX
  • 2015-2019 Chevrolet Suburban
  • 2015-2019 Honda CR-V
  • 2015-2019 GMC Canyon
  • 2015-2019 GMC Yukon
  • 2015-2017 Ford Expedition
  • 2015-2017 Ford Edge
  • 2016-2017 Chrysler 200
  • 2016-2018 Kia Optima
  • 2016-2019 Chevrolet Volt
  • 2016-2019 Dodge Durango
  • 2016-2017 Mitsubishi i-MiEV
  • 2016-2018 Chevrolet Malibu Lone Star
  • 2016-2019 Subaru Crosstrek Tradesman
  • 2017-2018 Nissan Titan
  • 2017-2019 Honda Ridgeline Rebel
  • 2017-2018 Chevrolet Trax
  • 2017-2019 Kia Cadenza Power Wagon
  • 2017-2019 Chevrolet Impala Lone Star
  • 2017-2019 Kia Niro Limited
  • 2017-2019 Chrysler Pacifica Big Horn
  • 2017-2018 Chevrolet Cruze Limited
  • 2017-2019 Fiat 124 Spider Laramie Longhorn
  • 2017-2019 Kia Sportage Laramie Longhorn
  • 2017-2018 Kia Forte Laramie
  • 2018-2019 Ford EcoSport Laramie
  • 2019-2019 Chevrolet Camaro Big Horn
  • 2019-2019 Subaru Ascent Tradesman
