Note: For the EXC’s that were made from 2007-2011 that are carbureted, our lights will require the purchase of #61-1040 (DC conversion kit).

Electric start bikes that require a stator modification or rewind will have to the purchase a switch & wiring harness kit.  Please refer to the “STATOR Reference Chart” found under the Tech Info header.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions & hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

Features:

  • Satisfactions Guarantee – 30 Day Money Back
  • Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 4,900 Utilizing 4 Cree LEDs
  • Wattage/Amps: 40W / 3.33A
  • Dimensions: 3.07" x 2.77" x 3.07"
  • Weight: 12 ounces
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

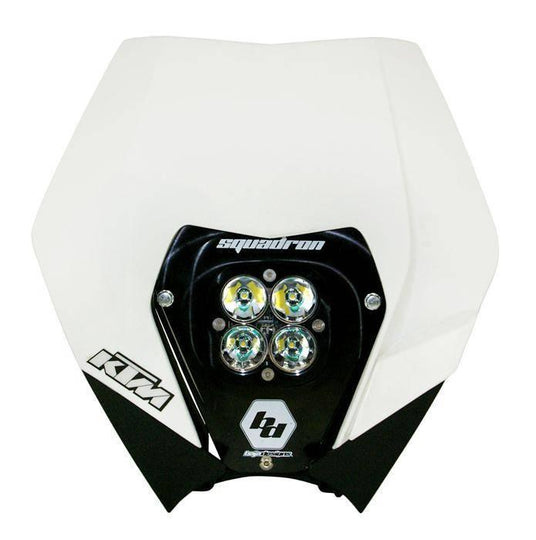

  • Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (10°) and Spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Specifically designed for those riders who are looking for more than just your average headlight. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell has been meticulously designed by our engineers to give our riders an extremely light weight (12 ounces) race light, while presenting a unique style and appearance that you will only find from Baja Designs. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Brand: Baja Designs

UPC: 688961772862
