Baja Designs LP6 Pro Pair LED White Driving Combo Light + Wiring Harness Kit 270003+640172

Features:

• uService– Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

• Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
• Forward Projecting Wattage/Amps: 90W / 6.5A
• IPT Lumens: 1,700 Utilizing 4 LEDs
• IPT Wattage/Amps: 15W / 1.0A
• Backlight Wattage/Amps: 4.14W / 0.3A
• Dimensions: 6.5″ Height / 6.5″ Width / 3.2″ Depth
• Weight: 4.2lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Wiring Harness Features:

• Wiring harness with plug and play Deutsch style connectors
• Built in splitter to power two LP9 or LP6 Lights
• Large automotive style ring terminals
• 3-position, 30amp DC Rated, DPDT, On-Off-On Switch to operate high and low beam independently
• Extra wire lead with splice connector to operate amber daytime running light (DRL)
• 20A/40A Relay & 30 amp inline fuse
• 12 foot length for battery to instrument cluster
• 15 foot length for instrument cluster to light mounting location

Includes:

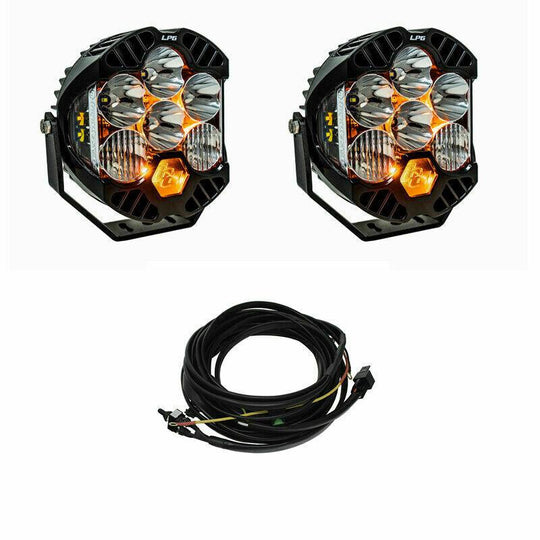

• 2 x LP6 Pro Lights
• 2 x Mounting Brackets with Hardware
• Wiring Harness (2 Light Max)

Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
Authorized Baja Designs dealer. Pair of Baja Designs LP6 Pro's in Driving/Combo pattern with wiring harness. Each LP6 Auxiliary light features a 6-inch billet aluminum housing, six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs, producing a 200 degree spread of usable light & 10,300 lumens of brightness (1 pair of lights produces 20,600 lumens in total). Amber day-time running light, low power, and high power modes. These are a great alternative to the larger LP9 if you prefer a lower profile look for use on your vehicle’s front bumper, roof, or A-Pillar.

Brand: Baja Designs
