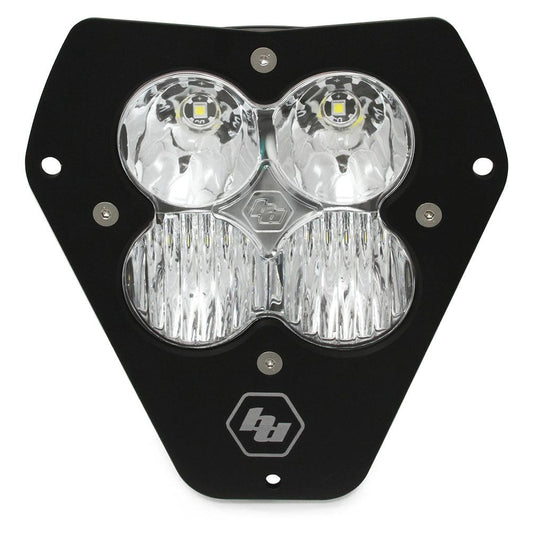

Baja Designs 2008-2013 KTM XL Sport LED Kit 567051 | AutoPartsToys

Baja Designs Features:

  • Satisfactions Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService®- Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 3,150 Utilizing 4 LEDs
  • Wattage/Amps: 26W / 2A
  • Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
  • Weight: 1.85 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

  • XL Sport, LED KTM 2008-2013 Kit

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)



If you are looking for an off road light that features unique styling and leading edge performance, than the XL Sport, LED KTM 2008-2013 Kit is the light for you. The XL Sport produces an impressive 3,150 lumens while only drawing 26 watts, allowing for a longer ride.

An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: For the EXC's that were made from 2007-2011 that are carbureted, our lights are plug and play with the purchase of 61-1040 (DC conversion kit).

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike).

Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

A Skene dimmer must be purchased separately to enable the high/low feature.

Brand: Baja Designs

  • 2008-2013 KTM XL Sport
