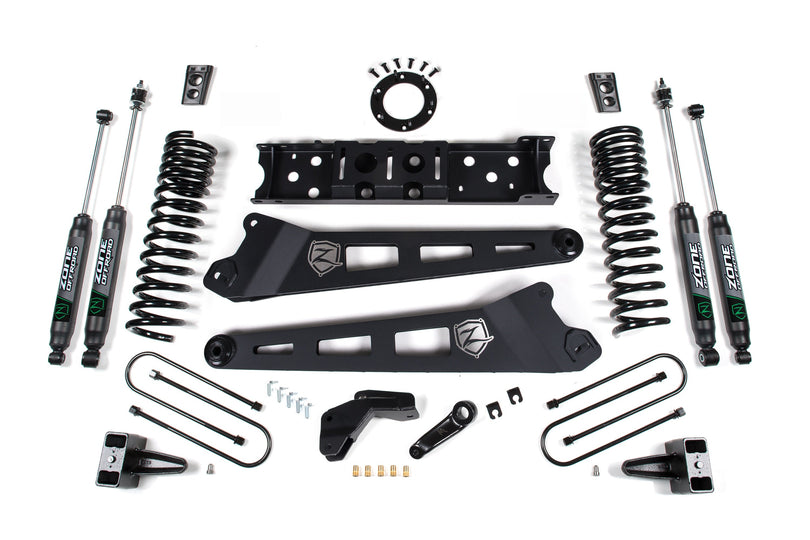

Zoneoffroad 2019-2024 Dodge Ram 3500 4WD Diesel 3in Block Kit Without Overload 6 Bolt Nitro Shocks Series 4.5 Inch Lift Kit With Radius Arm ZOND80N

Features & Benefits:

• High strength progressive rate front coil springs for a great ride on any terrain.
• Heavy duty 1/4"" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster.
• HD track bar relocation bracket to correctly position front axle under the truck.
• Forged drop pitman arm to correct steering angles.
• HD transmission crossmember and t-case indexing ring to correct front driveline angles.
• Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance Allows clearance for up to 37" tires

Specifications:

• Front Lift Method : Coil Spring & Radius Arm
• Front Lift Height : 4.5"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes

Recommended Tires & Wheels:

• (Trimming may be required)
• 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

Important Notes:

• Does not fit Dually Models with 8-bolt transmissions (Aisin).
• T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering.
• Will not fit Cab and Chassis models.
• Will NOT fit rear air-ride equipped models.
• Diesel models only.
• Will NOT Fit Mega Cab Aisin Transmissions (8-bolt).
• Vehicles with a Manual Shift Transfer Case require a Manual T-Case Indexing Kit. Add ZOND5409 in kit configuration.
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)

Rear Lift Option:

• Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

3 Inch Block Kit:

• Level to tail high appearance

2 Inch Block Kit:

• Tail low to level stance

Indexing Ring Option:

• 6 Bolt Indexing Ring:
• Kits come standard with 6-Bolt indexing ring kit.

8 Bolt Indexing Ring:

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also includes an internal shaft seal extension and new shaft seal..

Take your RAM 3500 to new heights with this 4.5" radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and heavy duty radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Brand: Zoneoffroad

• 2019-2024 Dodge Ram 3500
