SUPERLIFT 2017-2022 Ford F-250 F-350 Super Duty 4Wd Dsl Suspension Lift Kit With Sl Shocks 6 Inch K167

Note:If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669.If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734
Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Radius Arm drops maintain proper caster
• Drop Pitman arm to help ensure proper operating angle of Draglink
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear inch “ Superlift Shocks
• Backed by our limited lifetime warranty
• This is a complete coil spring suspension Lift Kit for the 2017-2022 and newer Ford F-250/F-350 4WD inch “ diesel engine
• Provides 6 inch � lift height
• Includes track bar and radius arm drop brackets, rear blocks, front and rear Superlift shocks.

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

Include:

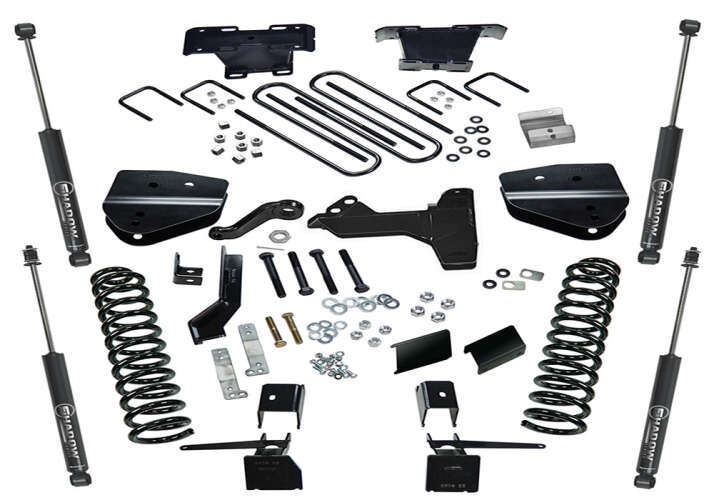

• Front coil springs, radius arm brackets, pitman arm, sway bar brackets, track bar bracket, brake line brackets, steering stabilizer bracket, Superlift shocks, and all hardware needed for installation.
• Rear fabricated blocks with ubolts and Superlift shocks.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.

Superlift 6 inch � Lift for the 2017-2022 Ford Super Duty F-250 | F-350 4WD is achieved via engine specific coil springs to ensure the proper lift height and maintain factory ride quality. Radius Arm lowering brackets are used to restore proper caster angle/alignment. Other Components included with the 6 inch � system are: front compression travel-stop relocation brackets, track bar relocation bracket, drop pitman arm and a steering stabilizer bracket. The rear lift is achieved with a new designed fabricated rear block that allows the removal of the stock block. This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 6-inch Ford F-250 | F-350 with the best variety of shocks on the market. Shocks for this kit are available in the following: Superlift Shocks

Brand:Superlift

• 2017-2022 Ford F-350 Super Duty
• 2017-2022 Ford F-250 Super Duty
