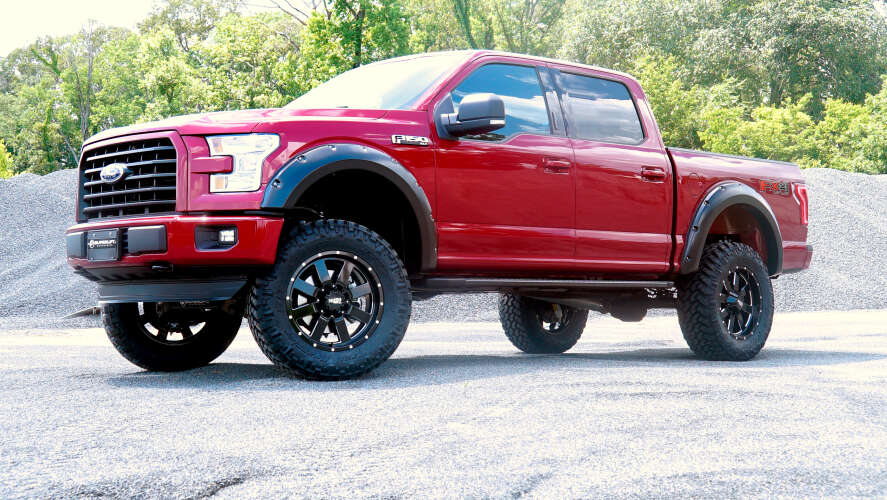

SUPERLIFT 2015-2020 Ford F-150 Lift Kit 6 Inch With SL Rear Shocks K12 – autopartstoys.com

Notes: Does not fit Single Cab Truck models. Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims

Features:

  • Replacement Knuckle style suspension lift kit
  • Direct bolt-on (No Weld Design)
  • Allows the use of 18” or larger factory wheels
  • Allows clearance for up to 35” tires
  • Aligns to OEM Specifications
  • Rear Superlit | Bilstein | or Fox® shocks
  • This is a complete replacement knuckle style suspension Lift Kit for the 15 -20 Ford F-150 4WD
  • Provides 6” lift height
  • Includes fabricated rear lift blocks and rear Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers or Fox 2.0 Shock Absorbers

Benefits:

  • Aligns to OEM Specifications
  • Maintains ride quality and handling characteristics
  • Corrects Front to Rear factory rake
  • Retains OEM Track Width
  • Designed using Original Equipment (OE) CAD data for accuracy.

Include:

  • All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 15 -20 4wd Ford F-150.
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Front:

  • CNC Machined extended ductile iron steering knuckles
  • CNC machined billet aluminum driveshaft spacer
  • All fabricated steel components are laser cut, CNC formed finish with a durable powder coating
  • Front top mount strut spacers
  • One-piece front and rear cross members
  • Front differential skid plate
  • Sway-bar relocation brackets
  • Differential relocation brackets
  • Brake line relocation brackets
  • Eccentric cam-bolts

Rear:

  • Fabricated rear Blocks – provides proper pinion angle to eliminate axle wrap and driveline vibrations
  • Brake line relocation brackets
  • U-bolts and hardware
  • Compression stop extensions
  • Superlift Shocks or Bilstein® 5100 Series or Fox® Performance Series 2.0 Shocks (2 shocks)

Description


Superlift’s 6Inch Lift kit for the 2015-2020 Ford F-150 now features a variety of shock options, from Superlift Shocks to Bilstein 5100 Series Shocks to Fox® performance series 2.0 IFP shocks. This shock variety will allow you find your ride quality. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. This is a complete replacement knuckle style suspension lift kit that provides 6 inches of lift and includes fabricated rear blocks and Rear Superlift, Bilstein or Fox® Performance 2.0 Shocks. All required parts are included to make sure your Ford F-150 handles and performs just like a stock truck!

Brand:Superlift

  •  2015-2020 Ford F-150
