SUPERLIFT 2015-2020 Ford F-150 4WD 6" Suspension Lift Kit With Fox 2.0 Shocks K127F

Notes:

• Does not fit Single Cab Truck models
• Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims

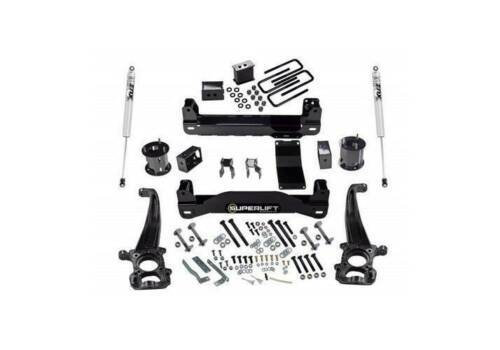

Include:

• All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 2015 -2020 4WD Ford F-150
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
• Installation Time inch “ 7-8 hours
• Difficulty Level inch “ 3 of 5

What is this?

• This is a complete replacement knuckle style suspension lift kit for the 2015 -2020 Ford F-150 4WD
• Provides 6 inch � lift height
• Includes fabricated rear lift blocks and rear Superlift Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers or Fox 2.0 Shock Absorbers or King Shocks

Features:

• Replacement Knuckle style suspension lift kit
• Direct bolt-on (No Weld Design)
• Allows the use of 18 inch � or larger factory wheels
• Allows clearance for up to 35 inch � tires
• Aligns to OEM Specifications
• Rear Superlit | Bilstein | or Fox shocks | King Shocks (K127KG)


Benefits:

• Aligns to OEM Specifications
• Maintains ride quality and handling characteristics
• Corrects Front to Rear factory rake
• Retains OEM Track Width
• Designed using Original Equipment (OE) CAD data for accuracy.

Front:

• CNC Machined extended ductile iron steering knuckles
• CNC machined billet aluminum driveshaft spacer
• All fabricated steel components are laser cut, CNC formed finish with a durable powder coating
• Front top mount strut spacers
• One-piece front and rear cross members
• Front differential skid plate
• Sway-bar relocation brackets
• Differential relocation brackets
• Brake line relocation brackets
• Eccentric cam-bolts

Rear:

• Fabricated rear Blocks inch “ provides proper pinion angle to eliminate axle wrap and driveline vibrations
• Brake line relocation brackets
• U-bolts and hardware
• Compression stop extensions
• Superlift Shocks or Bilstein 5100 Series or Fox Performance Series 2.0 Shocks (2 shocks) or King Shocks (Front Coil Overs and Rear inch “ Reservoir Shocks)



6 inch Lift Kit 2015-2020 Ford F-150 with Fox Shocks Superlift Suspension Systems now available with Superlift, Bilstein, Fox Shocks or King Shocks: Superlifts 6Inch Lift kit for the 2015-2019 Ford F-150 now features a variety of shock options, from Superlift Shocks to Bilstein 5100 Series Shocks to Fox performance series 2.0 IFP shocks to King Shock Coilovers and Rear Reservoir Shocks. This shock variety will allow you find your ride quality. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. This is a complete replacement knuckle style suspension lift kit that provides 6 inches of lift and includes fabricated rear blocks and Rear Superlift, Bilstein, Fox Performance 2.0 Shocks or King Shocks. All required parts are included to make sure your Ford F-150 handles and performs just like a stock truck!

Brand:Superlift

•   2015-2020 Ford F-150
