SUPERLIFT 2008-2010 Ford F-250 F-350 Super Duty 4WD Dsl with Replacement Radius Arms With Bilstein Shocks Lift Kit 8" K985B

NOTES: If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9695

Features:

• Replacement Front coil springs improve ride quality while rear blocks and add-a-leafs maintain load capacity
• Radius Arms with Cleveite OE Style rubber bushings
• Drop Pitman arm included
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear inch “ Superlift Shocks | Bilstein 5100 Series Shocks | Fox Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty
• This is a complete coil spring replacement radius arm suspension lift kit for the 2005-2007, 2008-2010 and 2011 - 2016 Ford F-250/F-350 4wd inch “ diesel engine
• Provides 8 inch � lift height
• Includes track bar bracket and related brackets, rear blocks, front and rear Superlift shocks or front and rear 5100 Series Bilstein shocks or front and rear Fox Performance Series 2.0 IFP Shocks
• This kit also has a King Shocks coilover shock option

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

Include:

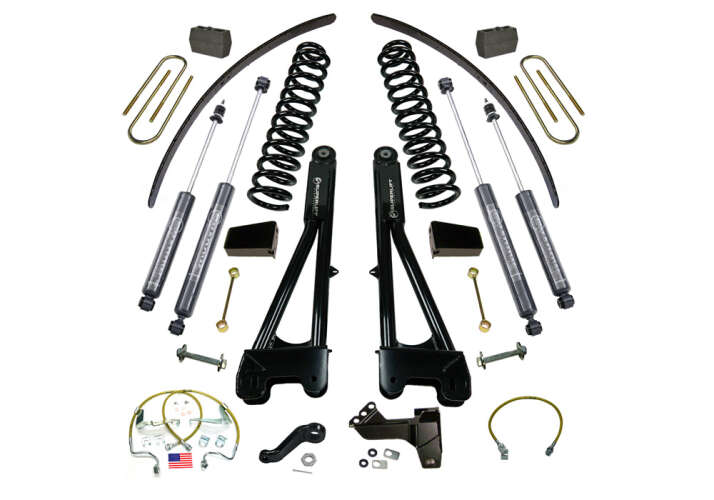

• Front coil springs, track bar bracket, replacement radius arms, drop pitman arm, sway bar correction, shocks, rear block, add-a-leaf, and u-bolt kit, and all specific hardware required
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

This is the Superlift 8 inch � suspension lift kit with Superlift Shocks, Bilstein Shocks, or Fox Shocks for the 2008-2010 Ford F-250 | F-350 Super Duty 4WD inch “ Diesel Engine OEM CAD models and the latest 3D software were used to precision engineer a suspension system that includes a set of massive, high-clearance tubular radius arms designed to bolt right into the factory mounts. These heavy-duty radius arms use the giant press fit OEM Cleveite bushing to reduce noise, vibration, and harshness(NVH). They feature a inch œTrue Flat inch � jack plate surface, include alignment cam bolts and are offset to the inside allowing maximum turning radius and tire clearance. Track bar relocation bracket, front sway bar correction, drop pitman arm, bump stop extension brackets, brake hose relocation brackets, rear lift (blocks & Add-a-leafs) and all the necessary hardware is included to make certain this package is complete with everything you need to the job right.

Brand: Superlift

• 2008-2010 Ford F-250 Super Duty
• 2008-2010 Ford F-350 Super Duty
