SUPERLIFT 2005-2022 Ford F-250 F-350 Super Duty Radius Arms 4 Inch-8In Lift Kit Pair 9500

NOTE: Designed to work with lift heights between 4-8 inches of lift. Designed to mount into the factory radius arm locations.
Feature:

• Superior Design & Construction
• Massive replacement tubular radius arms with 3.250 inch � Clevite bushings
• Offset for additional clearance of larger tires
• Radius arms offer maximum ground clearance
• Radius arms feature a inch ˜true flat jack point surface
• 100% bolt-on super-simple installation. Simple Remove & Replace components.
• Easily removable should the vehicle need to be returned to stock.
• Front: Radius arm inch “ driver side (1); radius arm inch “ passenger side (1); Supplied mounting hardware (1); eccentric cam bolts (2)
• Rear: None

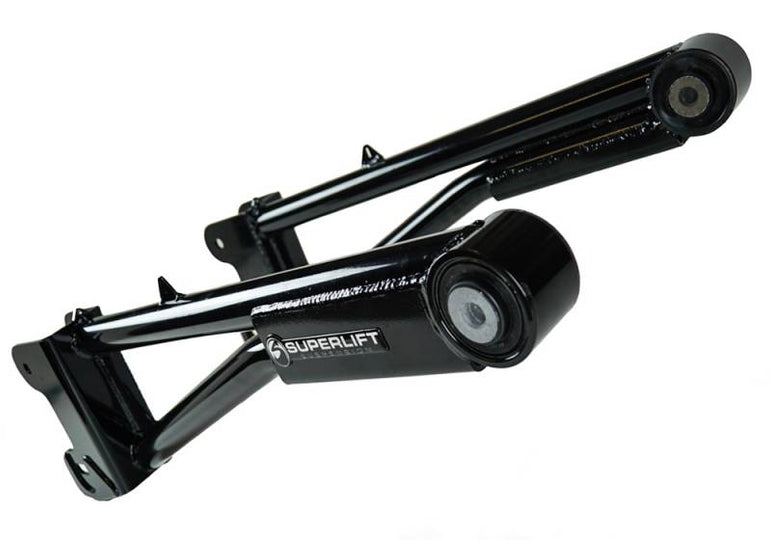

• These are tubular, high clearance radius arms with cam bolts.
• Offset for maximum tire clearance.
• OE style Cleveite Bushing pre-installed.

Include:

• Pair of high clearance radius arms with cam bolts and all associated hardware.

These are SUPERLIFT's replacement radius arms for 2005-2022 Ford F-250 Super Duty 4WD & the 2005-2022 Ford F-350 Super Duty 4WD. In 2005, the front suspension on the Ford Super Duty four-wheel drive trucks was updated & converted to front coil springs. The 2005-2022 Ford F-250 Super Duty 4WD & the 2005-2022 Ford F-350 Super Duty 4WD are all equipped with a front solid axle with coil springs & radius arms. Ford uses two (2) radius arms to locate the axle front-to-rear. The radius arm attaches to the axle above & below its center line so it can control the castor (or the inch ˜roll of the axle). SUPERLIFT engineered these radius arms from the drafting board using OEM CAD models, state of the art design tools & the latest software as part of our huge selection of lift kits for the 2005-2022 Ford F-250 Super Duty 4WD & the 2005-2022 Ford F-350 Super Duty 4WD. They were manufactured at our design & manufacturing center in West Monroe, Louisiana. Fabricated out of 2.00 inch � OD x 0.156 inch � wall DOM tubing (this is a larger diameter & heavier wall material than others) & from 0.025-inch metal that is CNC formed for precise fitment & professionally welded by hand. SUPERLIFT's massive, high clearance tubular radius arms are offset to the inside allowing additional clearance for wider tires.

Brand:Superlift

• 2005-2022 Ford F-250 Super Duty
• 2005-2022 Ford F-350 Super Duty
