SUPERLIFT 2005-2007 Ford F-250 F-350 Super Duty Lift Kit 4Wd Dsl Replacement Radius Arms With SL Shocks 4 Inch K975/86040X4

Note: If The Ford F-250 Or F-350 Super Duty Is Equipped With A 2-piece Rear Drive Shaft, A Carrier Bearing Spacer Is Required. Part # 9649. This Lift Kit Is Packaged With Rear Blocks And U-bolts That Are Configured For The Ford F-250 And F-350 Super Duty With The Factory 1-7/8" Blocks Without Top Mount Overloads. If Your Ford Is Equipped With The Factory 3.71" Block Or Top Mounted Overloads, A Longer Rear U-bolt Will Be Required. For Super Dutys Equipped With The 1-7/8" Blocks And Top Overloads, Part # 11674 Will Need To Be Purchased In Addition To The Lift Kit.

Features:

• Replacement Front Coil Springs Improve Ride Quality While Rear Blocks Maintain Load Capacity
• Radius Arms With Cleveite Oe Style Rubber Bushings
• Track Bar Relocation Bracket Prevents Stud Bind And Steering Wheel Kick
• Front And Rear inch “ Superlift Shocks | Bilstein 5100 Series Shocks
• Backed By Our Limited Lifetime Warranty
• This is a complete coil spring replacement radius arm suspension lift kit for the 2005-2007 Ford F-250/F-350 4WD inch “ diesel engine
• Provides 4 inch � lift height
• Includes track bar bracket and related brackets, rear blocks, front and rear Superlift shocks or front and rear 5100 Series Bilstein shocks
• This kit also has a King Shocks coilover shock option


Benefits:

• Retains Oem Caster And Camber Alignment Specifications
• Maintains Ride Quality And Handling Characteristics
• Designed Using Original Equipment (Oe) Cad Data For Accuracy

Include:

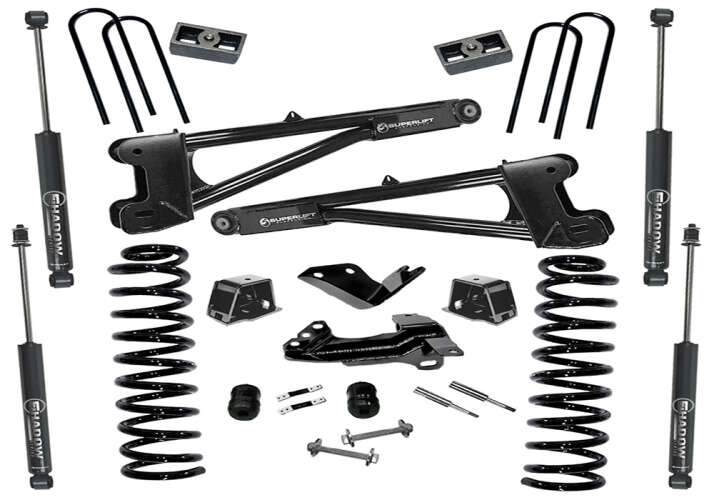

• Front coil springs, track bar bracket, replacement radius arms, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2005-2007 4WD Ford F-250/F-350 DIESEL Engine.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Description


This is the Superlift 4 inch � suspension lift kit with Superlift Shocks or Bilstein Shocks for the 2005-2007 Ford F-250 | F-350 Super Duty 4WD inch “ Diesel Engine OEM CAD models and the latest 3D software were used to precision engineer a suspension system that includes a set of massive, high-clearance tubular radius arms designed to bolt right into the factory mounts. These heavy-duty radius arms use the giant press fit OEM Cleveite bushing to reduce noise, vibration, and harshness(NVH). They feature a inch œTrue Flat inch � jack plate surface, include alignment cam bolts and are offset to the inside allowing maximum turning radius and tire clearance. Track bar relocation bracket, front sway bar correction, bump stop extension brackets, brake hose relocation brackets, rear lift and all the necessary hardware is included to make certain this package is complete with everything you need to the job right.

Brand:Superlift

• 2005-2007 Ford F-350 Super Duty
• 2005-2007 Ford F-250 Super Duty
