Note:

  • If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required.  Part # 9649
  • Dually Applications may require different u-bolts
  • For Super duty’s equipped with top mount overloads, a different u-bolt is required. Part # 11674 will need or replace block kit with part #11694

Features:

  • Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
  • Radius Arm Drop Brackets
  • Front Compression Travel-Stop Brackets prevent suspension over-compression
  • Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
  • Threaded front anti-sway extensions do not require cutting or welding
  • Front and Rear Shock Options: Superlift Shocks OR Bilstein 5100 Series Shocks OR Fox Performance Series 2.0 IFP Shocks
  • Backed by our limited lifetime warranty
  • This is a complete coil spring lift kit for the 2005-2007 Ford F-250/F-350 – diesel engine
  • Provides 4” lift height
  • Includes track bar and radius arm relocation brackets, front and rear Superlift shocks or Front and rear 5100 Series Bilstein shocks or Front and Rear Fox Shocks

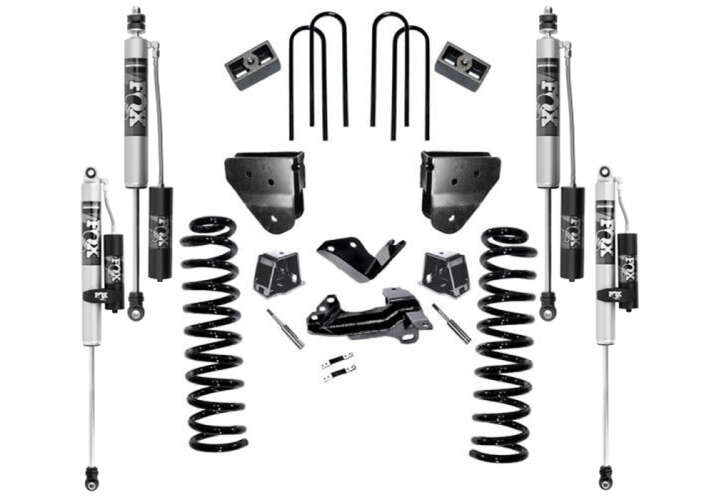

Includes:

  • Front coil springs, track bar bracket, radius arm brackets, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2005-2007 4wd Ford F-250 | F-350 DIESEL
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Benefits:

  • Aligns to OEM specifications
  • Maintains ride quality and handling characteristics


​Superlift Suspension Systems now available with Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This 4” Lift for the 2005-2007 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality.  Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 4-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket.  Rear lift is acheieved by 2.5 inch blocks.

Complete your 4-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market.  Shocks for this kit are available in the following: Superlift Shocks OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.

Brand: Superlift

  • 2005-2007 Ford F-250 Super Duty
  • 2005-2007 Ford F-350 Super Duty
