Superlift 2000-2002 Dodge Ram 2500 3500 4WD DIESEL 5in Suspension Lift Kit With Fox 2.0 Shocks K336FX/86040X4

Note:

• Minor cutting and/or welding required
• Rear u-bolts fit vehicles with and without a top-mounted overload leaf.  Those without overloads will have approximately 2” of excess u-bolt length that can be trimmed.  Or for short u-bolts, refer to block chart and replace listed block kit with non-overload u-bolt application

Features:

• Track bar relocation bracket prevents the steering wheel kick and stud bind
• Fabricated Brackets constructed from .25” thick plate steel
• Heavy-duty replacement upper and lower links maintain desired caster angle and feature greaseable Urethane Bushings
• Front | Rear Compression travel stop brackets eliminate over-compression
• Drop Pitman arm relieves drag link angle to prevent bump steer | wandering
• Available in Superlift Shocks or Fox Performance Series 2.0 IFP Shocks (Front and Rear)
• Add-a-leafs for rear
• Aligns to OEM specifications
• Backed by our Limited Lifetime Warranty

What is this:

• This is a complete coil spring style suspension lift kit for the 2000-2002 Dodge Ram 2500/3500 4WD pickup
• Provides 5” lift height
• Includes replacement front link arms
• Includes rear add-a-leafs and front and rear Superlift shock absorbers

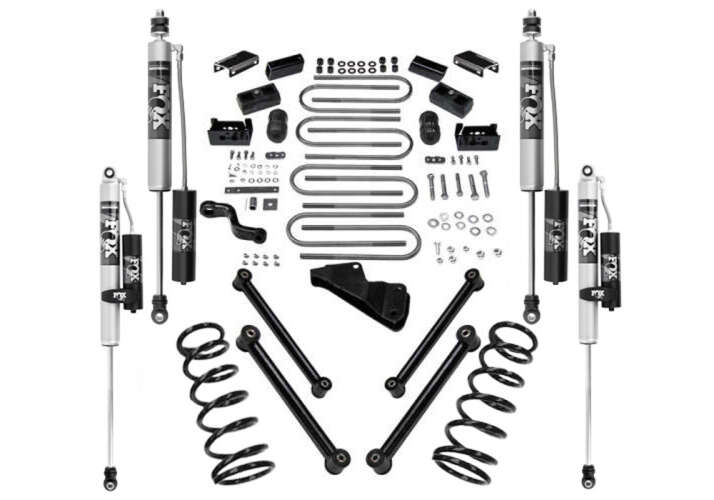

Includes:

• Front components: All brackets, shocks, coil springs, control arms, front track bar bracket, drop pitman arm, and all hardware required specific to the 2000-2002 Dodge Ram 2500/3500
• Rear components: Shocks, add-a-leafs, degree shim and u-bolt kit
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Important Disclaimer:?
The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Superlift Suspension Systems now available with Superlift Shocks OR Fox Shocks:

This Superlift lift kit is a complete replacement coil spring suspension lift kit for the 2000-2002 Ram 2500 | 3500  that provides 5 inches of lift height.  This kit is available with either Superlift Shocks or Fox Performance Series 2.0 IFP Shocks. Front lift is via new, pre-set coil springs for Ram 2500 |3500.  A drop pitman arm, for steering correction, works in concert with the track bar relocation bracket to ensure proper phasing.  New Upper | Lower front axle-to-frame link arms restore factory alignment specifications.  Front and rear suspension compression travel control is also addressed. For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the rear spring pack and control axle wrap. The lift kit is available with Superlift Shocks or Fox Performance series 2.0 IFP Shocks.

Brand: Superlift

• 2000-2002 Dodge Ram 2500 3500
