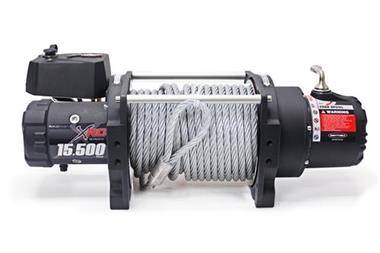

Smittybilt Universal XRC 15.5 Gen2 15500 lb. Winch -IP67 97415

Features:

• Waterproofing: IP67 Rating
• Fairlead: 4-Way Roller
• Rated Line Pull: 15500Lbs (7045kgs) single-line
• Remote Control: Included
• Motor: 6.6hp Series Wound
• Recommended Battery: 650CCA Minimum for Winching
• Control: Remote Switch 12' (3.7m) lead
• Battery Leads: 25mm 72"(1.83m)
• Gear Train: 3-Stage Planetary
• Gear Ratio: 397:1
• Finish: Textured Black
• Weight: 124.0Lbs (56.5Kgs)
• Clutch: Sliding Ring Gear Mounting
• Bolt Pattern: 10.0" x 4.50"
• Brake: Automatic In-Drum
• Overall Dimensions (L x W x H): 23.5" x 8.4" x10.7
• Drum Size: Diameter 3.45" (88.0mm)
• Length: 10.0" (254mm)
• Cable: 93.5' 25/64" Diameter

The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranginging from 9500lb to 17500 lbs capacities Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is finished in a rugged UV-Resistant matte black coatingwith stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy duty winch controller four-way roller fairlead forged steel tow hook and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.
