JKS 2020-2022 Jeep Wrangler JL J-Konnect Diesel 4dr 2.5" Lift Kit with Fox 2.0 Performance Series Shocks JSPEC163KFP

This System Includes Fox Shocks Only
Will Only Fit Diesel Engine

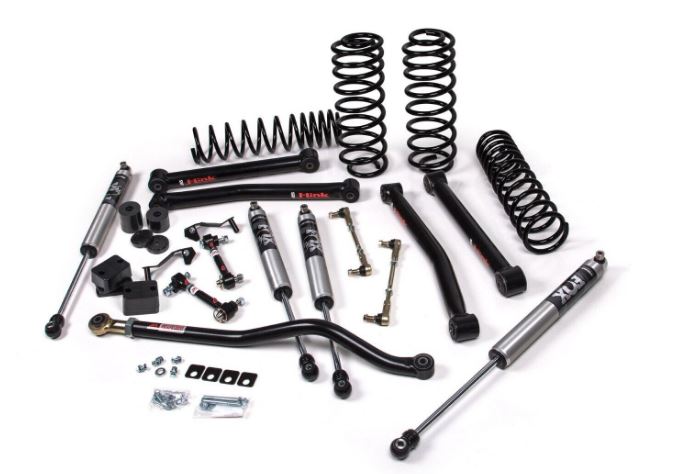

Features & Benefits:

• Front/Rear Dual Rate Coil Springs designed to great ride quality across any terrain.
• Front/Rear Shocks specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
• Front/Rear Bump Stop Extensions to properly limit suspension up travel.
• Front/Rear J-Link Lower Control Arms to add strength and correct caster.

Tire Specs:

Rubicon Models (all kits):

• Tire: 37x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5"

Non-Rubicon Models (all kits):

• Tire: 35x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5"

Important Notes:

• Factory wheels cannot be reinstalled without wheel spacers
• Will not fit 4xe models
• Will not fit Rubicon 392 models

For serious off-road use, step up to a JKS J-Konnect 2.5" suspension system for your Diesel Wrangler JK 4-Door. J-Konnect„¢ can tackle aggressive terrain including rocks and ruts without giving up street manners or breaking the bank. J-Konnect system takes suspension component strength and suspension geometry a step further by adding front and rear fixed-length J-Link lower control arms along with a drag link flip kit and track bar braces. In addition to being significantly stronger than factory control arms, J-LINK lower control arms add front caster and rear wheelbase. Built from 2 x .250-wall DOM tubing, J-LINK control arms provide street-friendly NVH isolation with large factory style rubber bushings at both ends. The drag link flip kit flattens the steering angle to mimic factory angles, while the track bar adds strength and protection. Combined with the matched dual-rate coil springs, custom-valved FOX 2.0 Performance Series monotube shocks, an adjustable track bar, Quicker Disconnect sway bar end links, and more. J-Konnect„¢ is ready for aggressive trail performance. Get connected with J-Konnect.

Brand: JKS

• 2020-2022 Jeep Wrangler JL
