JKS 2018-2022 Jeep Wrangler JL 4dr J-Kontrol 2.5" Lift Kit With Fox 2.5 Performance Elite Series Shocks Standard Rate Coils JSPEC137PES

This System Includes Fox Shocks Only

Features & Benefits:

• Front/Rear Dual Rate Coil Springs (standard) designed to great ride quality across any terrain.
• Front/Rear FOX 2.0 Performance Series, or FOX 2.5 Performance Elite specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
• Front/Rear Bump Stop Extensions to properly limit suspension up travel.
• Front Control Arm Correction Brackets to flatten upper/lower control arm angles to correct caster and improve handling.

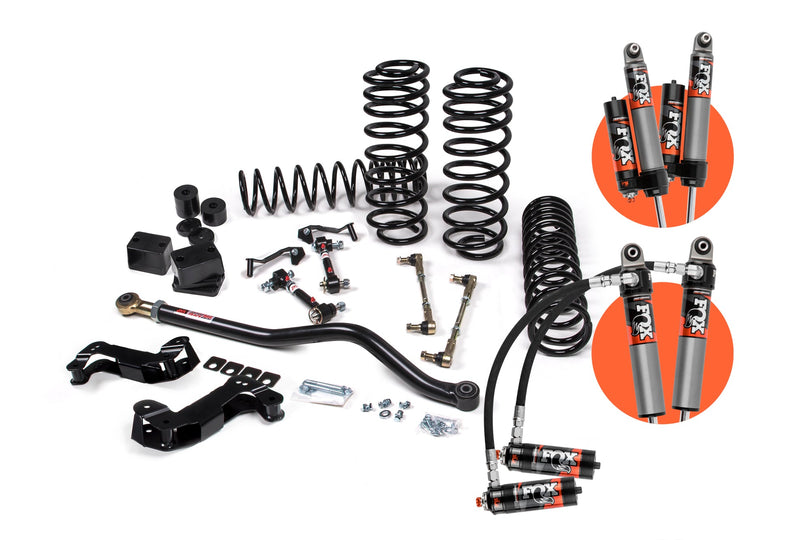

Components:

• JKS6201(x1): Jeep Wrangler JL Control Arm Correction Brackets
• JSPEC1251(x1): JL 2.5in Front Coil Spring Kit - STD
• JSPEC1259(x1): JL 2.5in Rear Coil Spring Kit - STD
• JSPEC1310(x1): JL J-Kontrol Main Box Kit
• FOX88326050(x1): Jeep Wrangler JL Front, Performance Elite 2.5" Dia., Pair
• FOX88326054(x1): Jeep Wrangler JL Rear, Performance Elite 2.5" Dia., Pair

Tire Specs:

Rubicon Models (all kits):

• Tire: 37x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5"

Non-Rubicon Models (all kits):

• Tire: 35x12.50
• Wheel:17x9, 18x9, 20x9
• Backspacing: 5" BS
• Other tire/wheel sizes can be used, however may require additional modification.

Important Notes:

• Factory wheels cannot be reinstalled without wheel spacers
• HD front springs recommended for applications with aftermarket winch/bumper combo
• HD rear springs recommended for applications with rear mounted full size spare tire
• Will not fit 4xe models
• Will not fit Rubicon 392 models

Increase the clearance and performance of your 4-Door Jeep Wrangler JL with a 2.5" lift J-Kontrol„¢ suspension system. It delivers exceptional stability on and off road. A step up from JKS J-Venture„¢ systems, J-Kontrol„¢ is a true bolt-on system that adds in front control arm correction brackets to the J-Venture Kit's long list of upgrade components including JSPEC dual-rate coil springs, custom-valved FOX 2.5 Performance Elite Series shocks equipped with Dual Speed Compression adjusters, a front adjustable Track Bar and rear Track Bar Bracket (to correct axle positioning under vehicle), Quicker-Disconnect sway bar end links, front/rear Bump Stop Extensions and front Control Arm Correction Brackets to flatten upper/lower control arm angles. The supplied control arm brackets work with your Jeep's stock control arms to correct caster and improve handling. J-Kontrol offers enhanced performance for daily driving, beach cruising, or regular trail use.

Brand:

• 2018-2022 Jeep Wrangler JL
