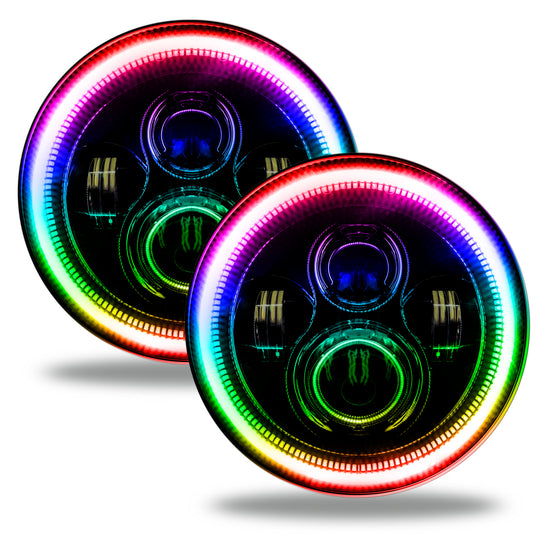

Oracle Lighting High Powered 7" LED Headlights Bezel Black 5769-334

Product Features: (Per Light):

• Low Beam Wattage: 30W Normal/36W Max
• Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
• High Beam Wattage: 40W Normal/48W Max
• High Beam Lumens: 3600 Lumens/4800 Raw Lumens
• Color Temperature: 6000K (Cool White Color)
• Input Voltage of Light: 12-24V DC
• Input Voltage of Halo (If Included): 12V DC
• Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
• Optional: ORACLE Halo Rings Pre-Installed
• Premium Performance Phillips Luxeon ZES LEDs
• Die-Cast Housing with Corrosion Resistant Coating
• Heavy Duty Solid State Electronics
• Hard-coated Polycarbonate Lens
• Wide Beam Pattern with Sharp Cut-Off Line
• Easy Plug & Play Installation
• 2 Year Warranty
• DOT and SAE Certified

Package Includes:

• 2 x Oracle Lighting 7" High Performance LED Headlights (Pair)
• 2 x JK specific "Plug & Play" Wiring Adapters
• Optional ColorSHIFT® Controller if selected

Latest Product Improvement:

• Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the LED halos.
• Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
• Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.
• Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
• LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.

Complete Package for adding High-Performance 7" LED Headlights to your Wrangler JK without any fabrication or cutting your factory wiring. This complete Plug-&-Play kit also features Vertical and Horizontal headlight adjustment so you can put the light on the road (where you need it) and not blind oncoming traffic. This rugged solid-state LED design is perfect for the Jeep owner looking for high-quality lighting for better night time visibility without overpaying. Installation is very easy with the included JK specific Plug and Play� connectors. You can even choose optional colored Halos for even more customization! HALO WIRING: White or Amber Halo Additional wire may be needed Note: DRL wire cannot be used as a power source - Tapping into Park Lights will give manual control over LED accessory during daytime driving - LED accessory will turn on automatically in night mode when switch is set to AUTO - For full automatic control over the LED accessory use fuse F52 in the engine compartment fuse panel. HALO WIRING: Red, Blue, or Green Halo Extend Red (+) wire to controller, to toggle switch, existing headlight halo Extend Black (-) wire to common ground ColorSHIFT HALO Wiring: Connect directly to ColorSHIFT Controller

Brand: Oracle Lighting
