FEATURES

  • 9 Ring 57" LED Overhead Light Bar System for the 2017 Ford SVT Raptor
  • Race Inspired by Brad Deberti Racing and Deberti Designs, engineered specifically to create the ultimate performance Overhead LED Light Bar system for 2017+ Ford Raptor or F 150 models
  • Patented Pro6 Infinity Ring„¢ system: Fully Modular, Expandable and Adjustable hinge design to easily transform the Pro6 light bar between a straight or curved orientation
  • Patented Gravity Reflective Diode Technology inside every Pro6 LED Light for unparalleled beam shape, performance and clarity to deliver light where you need it most
  • High Quality Black Powder Coated Stainless Steel Overhead Brackets Designed Specifically to mount KC's Gravity LED Pro6 on Ford°Ûªs 2017 SVT Raptor
  • Multiple G6 LED Reflector Optics Utilizing a Combo Driving and Wide 40 Beam pattern to Provide Incredible Forward and Peripheral Lighting


LIGHT PERFORMANCE

  • Raw Lumens: 23,009 lm
  • Lux @ 10 Meters: 7,500 lx
  • Candela: 750,000 cd
  • Beam Distance (Meters): 1,732m


SPECIFICATIONS

  • Wattage: 180W
  • Amp Draw: 14.67A
  • LED Source: Cree XPL HD LED
  • LED Color: 5000K
  • Voltage: 9 32V
  • Dimensions: H 6.06" x D 3.33" x W 56.625"


PARTS INCLUDED

  • (1) Pro6 57" 9 Light LED Light Bar
  • (1) Pair of Overhead Mounting Brackets and Hardware for 2017 Ford F 150 SVT Raptor
  • (9) Light Covers Black with Yellow KC Logo
  • Performance Wiring Harness and Illuminated Light Switch


PERFORMANCE Gravity LED OPTICS
Patented Gravity LED G6 optical inserts provide exceptional output and efficiency. Pro6 light bars ship with a combination of SAE/ECE Driving and Wide 40 G6 optical inserts. The combination of different reflector optics allows for a more usable beam shape. Driving Beam lights provide powerful forward distance and equal beam distribution width, while the Wide 40 beam offer a wider area of coverage, increasing high speed cornering visibility. This not only results in incredible light output, but highly targeted light distribution and beam shape that translates to more usable light than standard forward facing or dual row LED Light bars on the market today.

INFINITY RING SYSTEM
The Infinity Ring„¢ system provides a race proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ring.

2017 FORD RAPTOR
The 2017+ Ford Raptor Pro6 LED light bar system comes complete with vehicle specific roof mounts engineered specifically to securely and easily mount KC's Gravity LED Pro6 System to the roof of your truck

RACE PROVEN STRENGTH & DURABILITY
Inspired by KC racer Brad Deberti, the Pro6 2017 Raptor 9 Light LED Light Bar System sets to break all lighting performance barriers while providing the most durable, reliable and scale able LED light bar design 10 today.

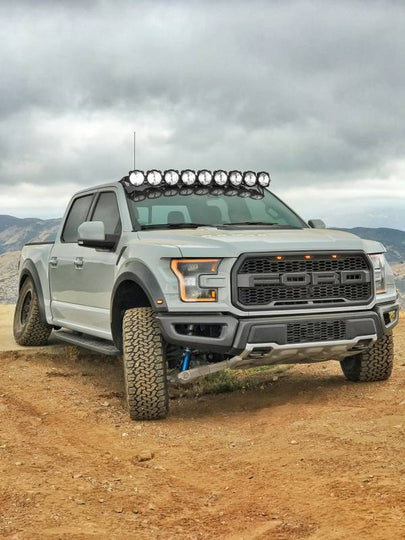

KC's Gravity LED Pro6 9-Light 57" LED Overhead Light Bar System for 2017 Ford Raptors delivers over 23,000 lumens in either straight or radius orientations to deliver light where you need it most. Includes overhead mounts and hardware.

Brand: KC HiLites

  • 2015-2020 Ford F-150
  • 2017-2020 Ford Raptor
