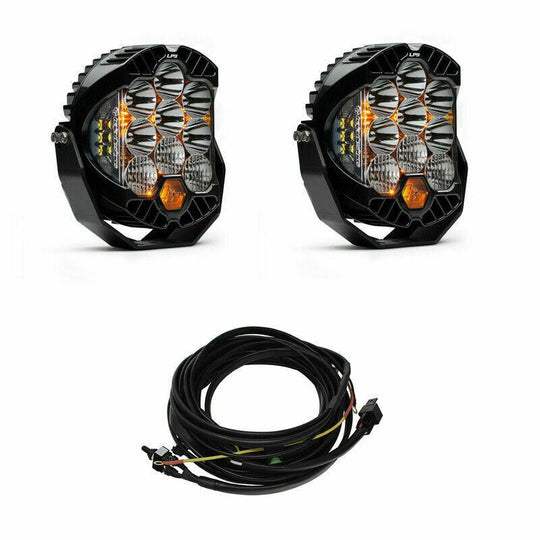

Baja Designs Pair LP9 LED Lights Driving Combo and Harness Kit 320003+640172

Features:

• Satisfactions Guarantee – 30 Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It.
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

• Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
• Forward Projecting Wattage/Amps: 105W / 7.6A
• IPT Lumens: 2,280 Utilizing 6 LEDs
• IPT Wattage/Amps: 21W / 1.52A
• Dimensions: 8" Diameter/ 3.25" Depth
• Weight: 6.5lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Harness Includes:

• Wiring harness with plug and play Deutsch style connectors
• Built in splitter to power two LP9 Lights
• Large automotive style ring terminals
• 3-position, 30amp DC Rated, DPDT, On-Off-On Switch to operate high and low beam independently
• Extra wire lead with splice connector to operate amber daytime running light (DRL)
• 20A/40A Relay & 30 amp inline fuse
• 12 foot length for battery to instrument cluster
• 15 foot length for instrument cluster to light mounting location

Kit Includes:

• (2) LP9 LED Driving/Combo Lights
• LP9, Harness, 2-light max, Pro

Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

A design that was inspired by Baja Designs’ legendary 8" La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.

The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode light it will fulfill all your lighting needs.

Brand: Baja Designs
