Features:

  • Adjustable Diaphragm Fuel Pressure Regulator
  • No Return Line Needed
  • Easy Installation
  • Flow Rates of 100 and 150 GPH
  • Complete Installation Kit (minus tools)

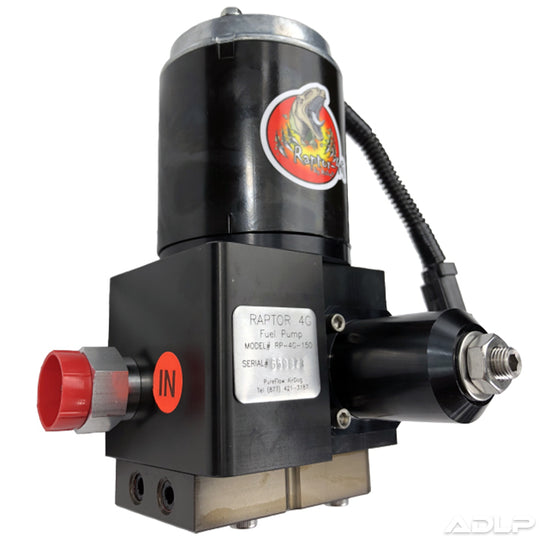

A lift pump system is a must have for your 2015-2016 6.6L LML Duramax. This AirDog Raptor RP-4G 150GPH R4SBC139 is the non-filtered line of lift pumps that AirDog offers but still packs a big punch! The fuel system on your Duramax is the heart of the vehicle’s performance and reliability. This low pressure LML lift pump mounts to the inner frame rail using the supplied sandwich plate mounting system, the suction line connects to the factory suction fitting on top of the fuel module, and the pressure side connects to the factory injection pump feed line on the frame back by the fuel cooler making install quick and easy. The AirDog Raptor RP-4G 150GPH is internally regulated and does not require a return line.

This low pressure Duramax lift pump will solve the infamous P0087 & P1093 low fuel rail pressure codes. By supplying your CP4 injection pump with fuel, rather than your injection pump doing most of the work pulling the fuel up from the tank. This positive supply being fed to your CP4 will also add performance, throttle response, and longevity to your vehicle. Due to extra stress on your fuel system from either high mileage and/or additional performance modifications, like a tuner or larger injectors, your injection pump can become weak over time. Resulting in a drop of performance, reliability, and fuel economy.

This AirDog Raptor RP-4G 150GPH Duramax LML lift pump is recommended for trucks that have mild fuel system and tuning upgrades.

The installation of any Raptor system has been designed with the customer in mind. We know not everyone has special tools or fabrication skills, so the installation was made as easy as possible with basic hand tools and the, occasional, power drill.  The quick-connect fittings and fuel lines make this a true plug and go installation, reducing the overall installation time. The step-by-step manual outlines each process of the installation and is accompanied by visual guides to aid your progress.

Brand: AirDog

  • 2015-2016 Chevrolet Silverado 2500 3500
  • 2015-2016 GMC Sierra 2500 3500
