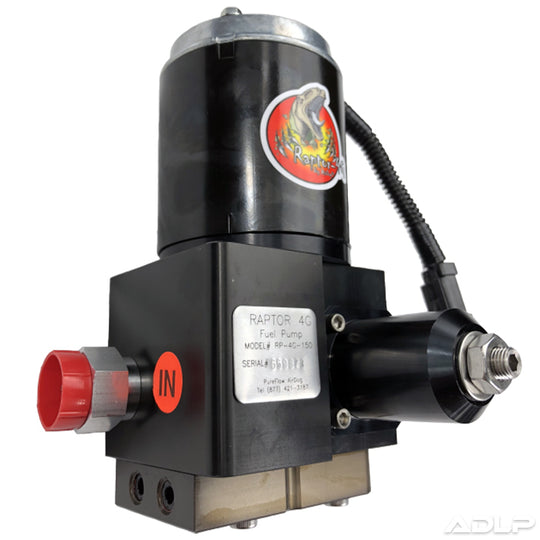

AirDog 2003-2005 Ford Excursion 2003-2007 Ford E-Series F-250 F-350 F-450 F-550 6.0L High Pressure Raptor 4G RP-150 Powerstroke Lift Pump R4SPBF358

Benefits:

• Adjustable Diaphragm Fuel Pressure Regulator
• No Return Line Needed
• Easy Installation
• Flow Rates of 100 and 150 GPH
• Complete Installation Kit (minus tools)

The Pump:Are you looking to install a new lift pump but you’re on a budget? Then you might want to consider a Raptor 4G for your 2003-2007 6.0L Powerstroke. The AirDog Raptor RP-4G 150GPH R4SPBF358is the non-filtered line of lift pumps that AirDog offers but still packs a big punch! The Raptor RP-4G 150gph is a lift pump that provides you diesel with a steady flow of fuel and greater performance for your modified truck. Whether you have a Powerstroke with an upgraded injection pump, oversized injectors, or both, you can really benefit from the 150gph lift pump.  It will eliminate fuel starvation at higher RPMs providing the fuel pressure your Powerstoke needs.

The System:The fuel system on your Powerstroke is the heart of the vehicle’s performance and reliability. This high pressure Powerstroke lift pump mounts to the inner frame rail using the supplied sandwich plate mounting system, the suction line connects to the factory suction fitting on top of the fuel module, and the pressure side connects to the factory injection pump feed line on the frame back by the fuel cooler making install quick and easy. The AirDog Raptor RP-4G 150GPH is internally regulated and does not require a return line.

The Fix:This high pressure Powerstroke lift pump could help with a P0087 & P1093 low fuel rail pressure codes by supplying your injection pump with fuel, rather than your injection pump doing most of the work pulling the fuel up from the tank. This positive supply being fed to your injection pump will also add performance, throttle response, and longevity to your vehicle. Due to extra stress on your fuel system from either high mileage and/or additional performance modifications, like a tuner or larger injectors, your injection pump can become weak over time. Resulting in a drop of performance, reliability, and fuel economy.
This AirDog Raptor RP-4G 150GPH Powerstroke lift pump is recommended for trucks that have mild fuel system and tuning upgrades.

Brand: AirDog

• 2003-2005 Ford Excursion
• 2003-2007 Ford E-series
• 2003-2007 Ford F-250
• 2003-2007 Ford F-350
• 2003-2007 Ford F-450
• 2003-2007 Ford F-550
